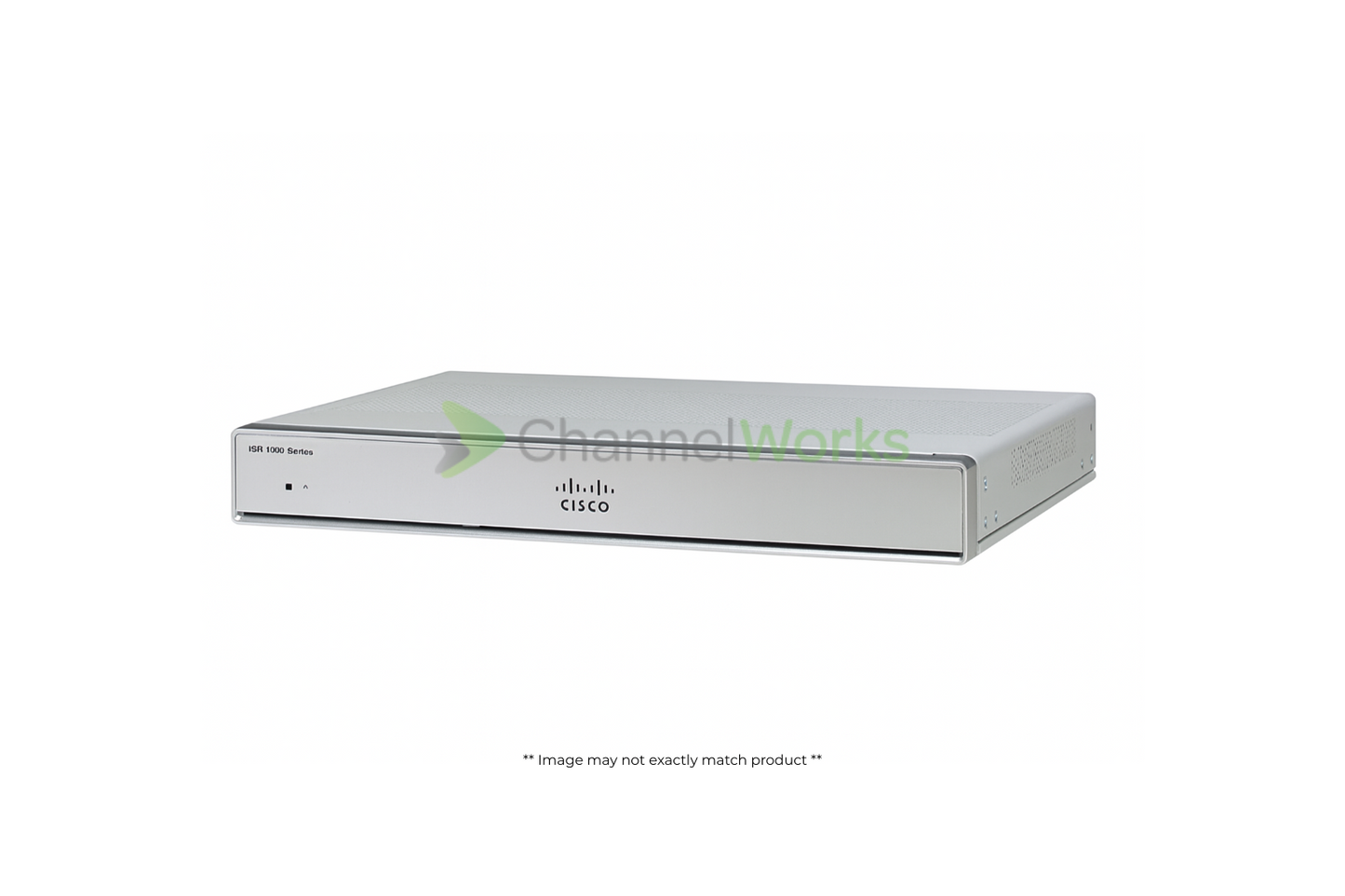

Cisco Integrated Services Router #C1121-8P - Desktop
Cisco Integrated Services Router #C1121-8P - Desktop
SKU:#C1121-8P
Access the internet, secure your network, and enable wireless connectivity—all with a single, compact device. The Cisco 1000 Series Integrated Services Routers (ISRs) combine high performance with simplicity, offering a fixed-form solution that’s both easy to deploy and manage. Despite their small size, these routers deliver reliable and secure broadband, Metro Ethernet, and wireless LAN connections, making them a powerful choice for modern network environments.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1 Second Edition, CB, CISPR 22, CISPR 24, CNS 13438, EN 300 386, EN 301 489-1, EN 301 489-24, EN 301 489-7, EN 301 511, EN 301 908-1, EN 301 908-13, EN 301 908-2, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN55022, EN55024, FCC CFR47 Part 15, FCC CFR47 Part 22, FCC CFR47 Part 24, ICES-003, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI V-3
Connectivity
Connectivity
Interface Provided: Antenna: 1 x GPS connector, LAN: 2 x 1000Base-T (PoE) - RJ-45, LAN: 2 x 1000Base-T (PoE+) - RJ-45, LAN: 4 x 1000Base-T - RJ-45, USB 3.0: 1 x console, WAN: 1 x 1000Base-T - RJ-45, WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
Dimensions
Dimensions
Height: 1.6 inch
Weight: 6.5 lbs
Width: 12.7 inch
Depth: 8.9 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 4 GB
RAM Installed: 4 GB
Network & Communication
Network & Communication
Compliant Standards: IEEE 802.11i, IEEE 802.11r, IEEE 802.1ag, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Access Control List (ACL) support, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Class-Based Weighted Fair Queuing (CBWFQ), Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Dynamic Multipoint VPN (DMVPN), Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), IPFIX, Location ID Separation Protocol (LISP), Management Information Base (MIB) II, Maximum Ratio Combining (MRC), NetFlow, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Desktop
Integrated Switch: 8-port switch
Key Features: Firewall, USB port, VPN support
Network Standard: DHCP, DNS, IPSec, L2TPv3, PPPoE
Product Type: Router
Remote Management: CLI, RMON, SNMP, TR-069
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP
Status Indicators: Status
WAN Ports Quantity: 2
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50/60 hertz
Product Information
Product Information
Authentication Method: RADIUS
Device Type: External power adapter
Packaged Quantity: 1
Service Activation: No
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA, IKE, MD5, SHA, Triple DES
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
