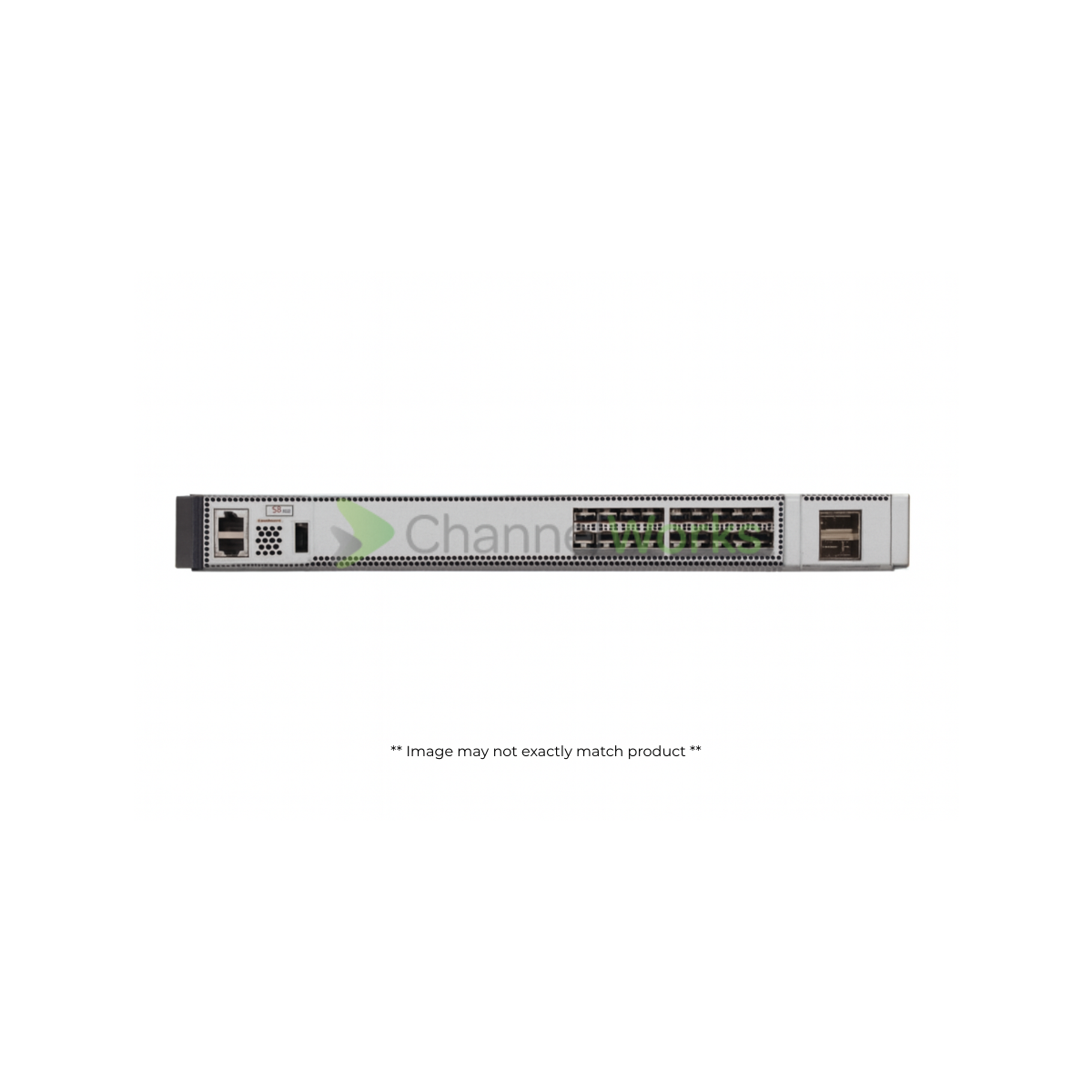

Cisco Catalyst #C9500-16X-E - Network Essentials - Switch - 16 Ports - Managed - Rack-Mountable

Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+
Port Quantity: 16
Port Type: 10 Gigabit Ethernet
Ports Type (2nd): 10 Gigabit SFP+

Height: 21.5 inch
Height (Rack Units): 1
Weight: 23.59 lbs
Width: 1.7 inch
Depth: 17.5 inch

Flash Memory Installed: 16 GB
RAM Installed: 16 GB

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, DHCP support, Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, IGMP snooping, Integrated Wireshark, IPv6 support, Layer 3 VPN (L3VPN) support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, NetFlow, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Switched Port Analyzer (SPAN), Syslog support, Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 64K entries
Manageable: Yes
Ports: 16
Product Type: Switch
Remote Management: NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: IGMP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet

Color Category: Gray

Features: Front-to-rear airflow
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 950 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Yes
Redundant Power Supply Supported: 1+1 (with optional power supply)

Capacity: FNF entries: 512000, Host IPv4 routes: 80000, Host IPv6 routes: 40000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 16000, QoS ACL scale: 18000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: up to 360 Mpps, Switching capacity (full duplex): up to 480 Gbps
Ports (2nd) Quantity: 2

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Software Type: Cisco IOS Universal

Built-in Devices: RFID tag
Encryption: 256-bit AES
Humidity Range Storage: 5 - 95% (non-condensing)
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 149 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
MTBF: 315,790 Hours
Operating Humidity: 5 - 90% (non-condensing)
