SKU:#C9500-32QC-E

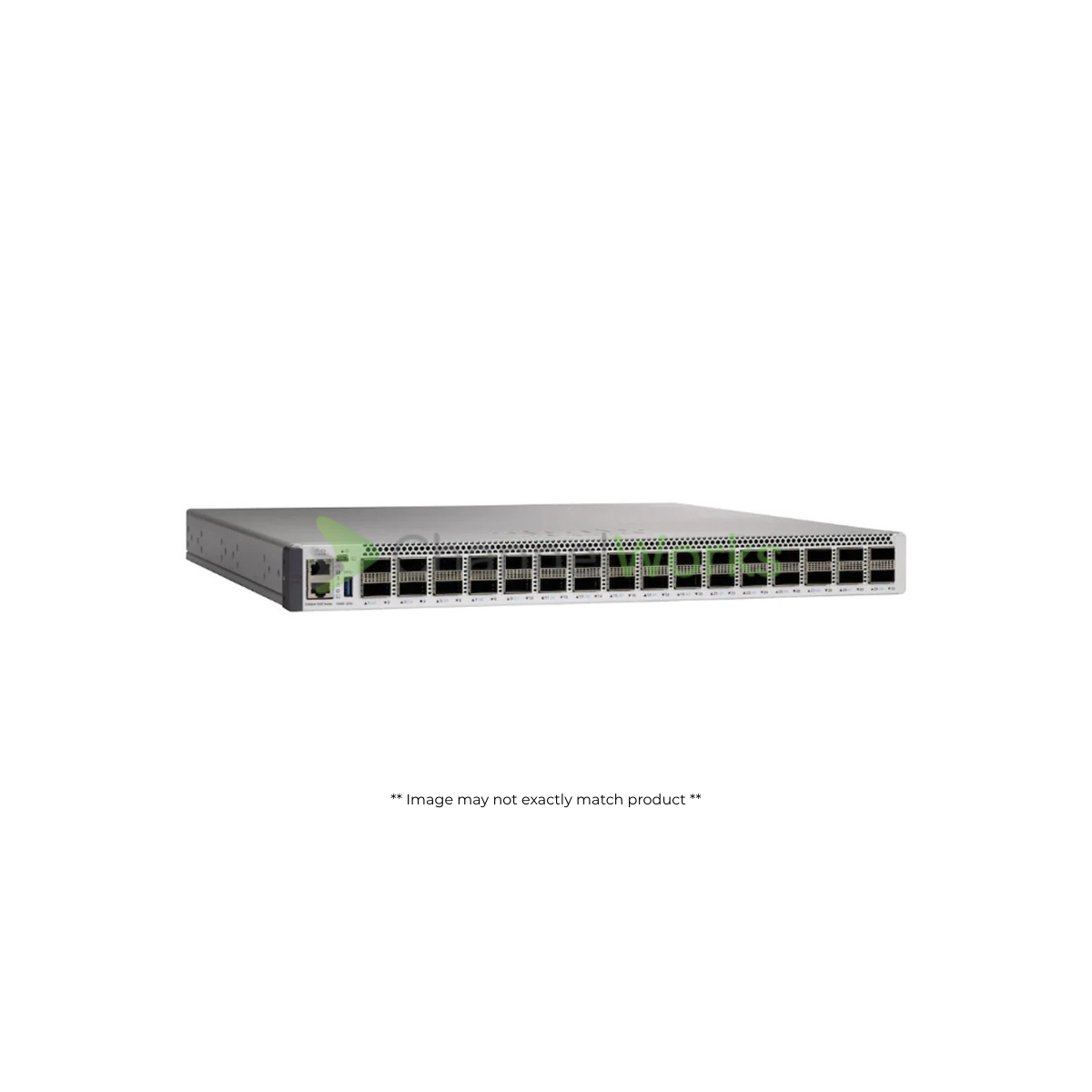

Cisco Catalyst 32 Port - 40G Ethernet Switch #C9500-32QC-E

Cisco Catalyst 32 Port - 40G Ethernet Switch #C9500-32QC-E

Regular price $5,062.99 USD
Regular price Sale price $5,062.99 USD
Sale Sold out

The Cisco Catalyst 9500 32-Port 40G Ethernet Switch is built for today’s hybrid environments—where users, devices, and applications are distributed across locations. With robust high-availability features and broad optics support, it delivers reliable core and aggregation layer performance for modern enterprise networks.

Certifications & Listings

Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Connectivity

Interface Provided: 2 x USB 3.0, 32 x 100Gbit/40Gbit LAN QSFP
Port Quantity: 32
Port Type: 40 Gigabit QSFP

Dimensions

Height: 1.7 inch
Height (Rack Units): 1
Weight: 21.85 lbs
Width: 17.5 inch
Depth: 18 inch

Included Items

Includes: Power Cord, Console Cable, Power Supply, Fans, Blanks, and Rack Mount Brackets

Memory

Flash Memory Installed: 16 GB
RAM Installed: 16 GB

Network & Communication

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Features: 802.1x authentication, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, DHCP support, Ethernet over MPLS (EoMPLS), First Hop Security (FHS), Integrated Wireshark, IPv6 support, Management Information Base (MIB), Maximum Likelihood Demodulation (MLD), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Secure Boot, Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Virtual Routing and Forwarding (VRF), Weighted Random Early Detection (WRED), Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 64K entries
Manageable: Yes
Ports: 32
Product Type: Switch
Remote Management: NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP, EIGRP, IGMP, MSDP, OSPF, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: 40 Gigabit Ethernet

Physical Characteristics

Color Category: Gray

Power

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 650 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Redundant Power Supply Supported: 1+1

Processor

Clock Speed: 2.4 GHZ
Processors Installed: 1

Product Information

Capacity: FNF entries: 96000, Host IPv4 routes: 90000, Host IPv6 routes: 90000, Indirect IPv4 routes: 212000, Indirect IPv6 routes: 212000, Multicast scale: 32000, QoS ACL scale: 16000, Routing table entries: 80000, Security ACL scale: 270000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 1 Bpps, Switching capacity (full duplex): 3.2 Tbps

Service & Support

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Software

Software Type: Cisco IOS XE 16.8.1

Technical Information

Built-in Devices: RFID tag
Encryption: 256-bit AES
Humidity Range Storage: 5 - 95% (non-condensing)
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 149 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
MTBF: 307,200 Hours
Operating Humidity: 5 - 90% (non-condensing)
