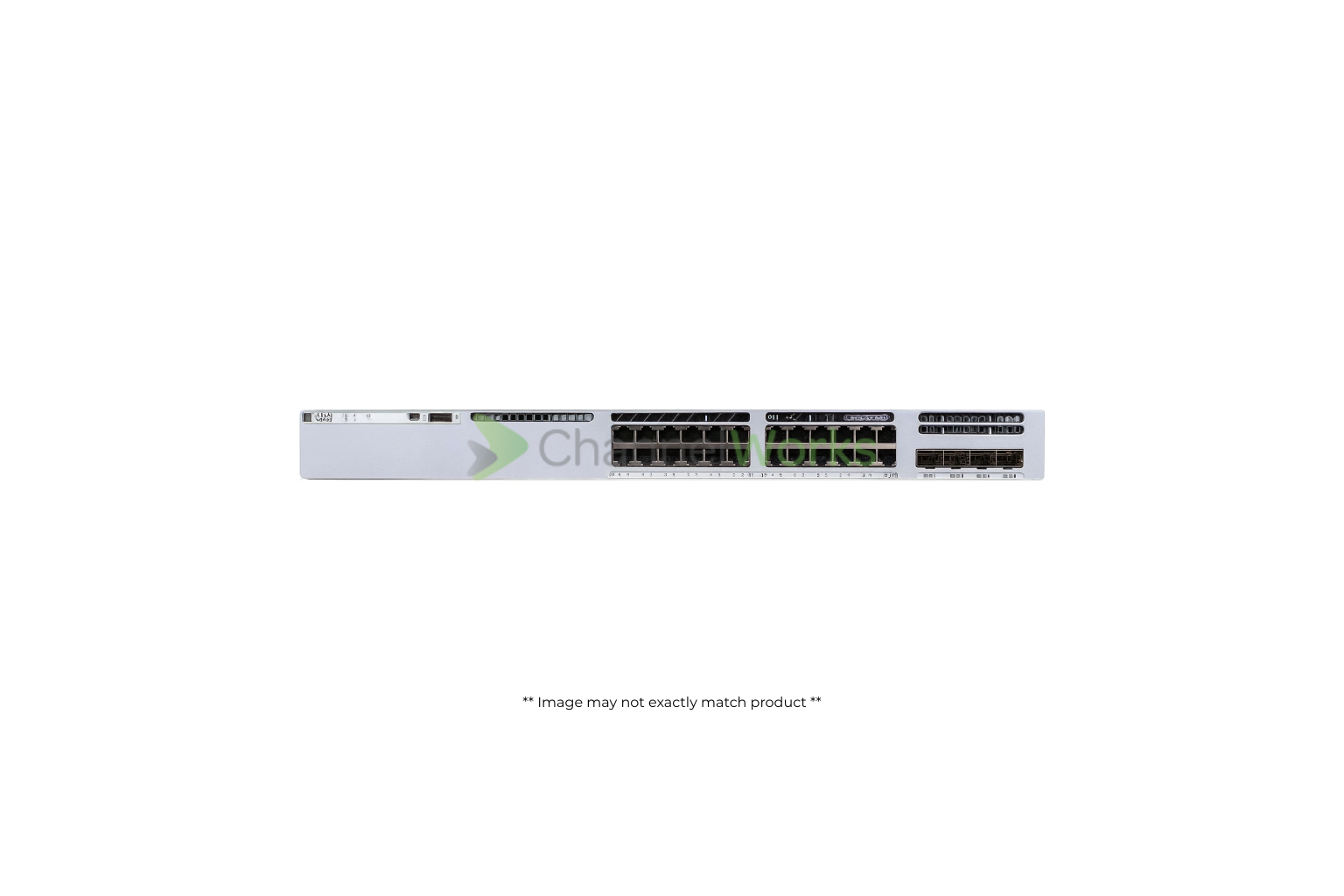

Cisco Catalyst #C9300L-24UXG-2Q-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 1 x console, 1 x management (LAN) RJ-45, 1 x network stack device, 1 x USB 2.0, 16 x 1000Base-T RJ-45 60 W, 2 x 40Gbit LAN uplink, 8 x 1/2.5/5/10GBase-T RJ-45
Port Quantity: 24
Port Type: 10/100/1000 (UPOE)
Ports Type (2nd): 40Gb Ethernet

Height: 19.2 inch
Weight: 16.01 lbs
Width: 17.5 inch
Depth: 1.7 inch

QSFP Slots: 1/2.5/5/10GBase-T

Flash Memory Installed: 16 GB
RAM Installed: 8 GB

Advanced Switching: Layer 3
Compliant Standards: IEEE 1588v2, IEEE 802.1ae, IEEE 802.1BA, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Wi-Fi CERTIFIED 6
Features: 16MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Blue Beacon LED, Cisco StackWise-320 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Secure Boot, Shaped Round Robin (SRR), Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
PoE Budget: 722 watt
Ports: 24
Power Over Ethernet (PoE): UPOE
Product Type: Switch
Remote Management: CLI, gRPC, IPv4, IPv6, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, YANG
Routing Protocol: EIGRP, EIGRP for IPv6, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 1100 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional

Capacity: ACL scale entries: 5120, IPv4 routes: 32000, IPv6 routes: 16000, Multicast scale: 8000, QoS scale entries: 5120, Switched virtual interfaces (SVIs): 1000, VLANs supported: 4094
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate with stacking: 500 Mpps, Forwarding rate: 261.9 Mpps, Switching capacity with stacking: 672 Gbps, Switching capacity: 352 Gbps
Ports (2nd) Quantity: 2
Ports (3rd) Quantity: 8

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Encryption: 128-bit AES, 256-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 291,670 Hours
Operating Humidity: 5 - 90% (non-condensing)
