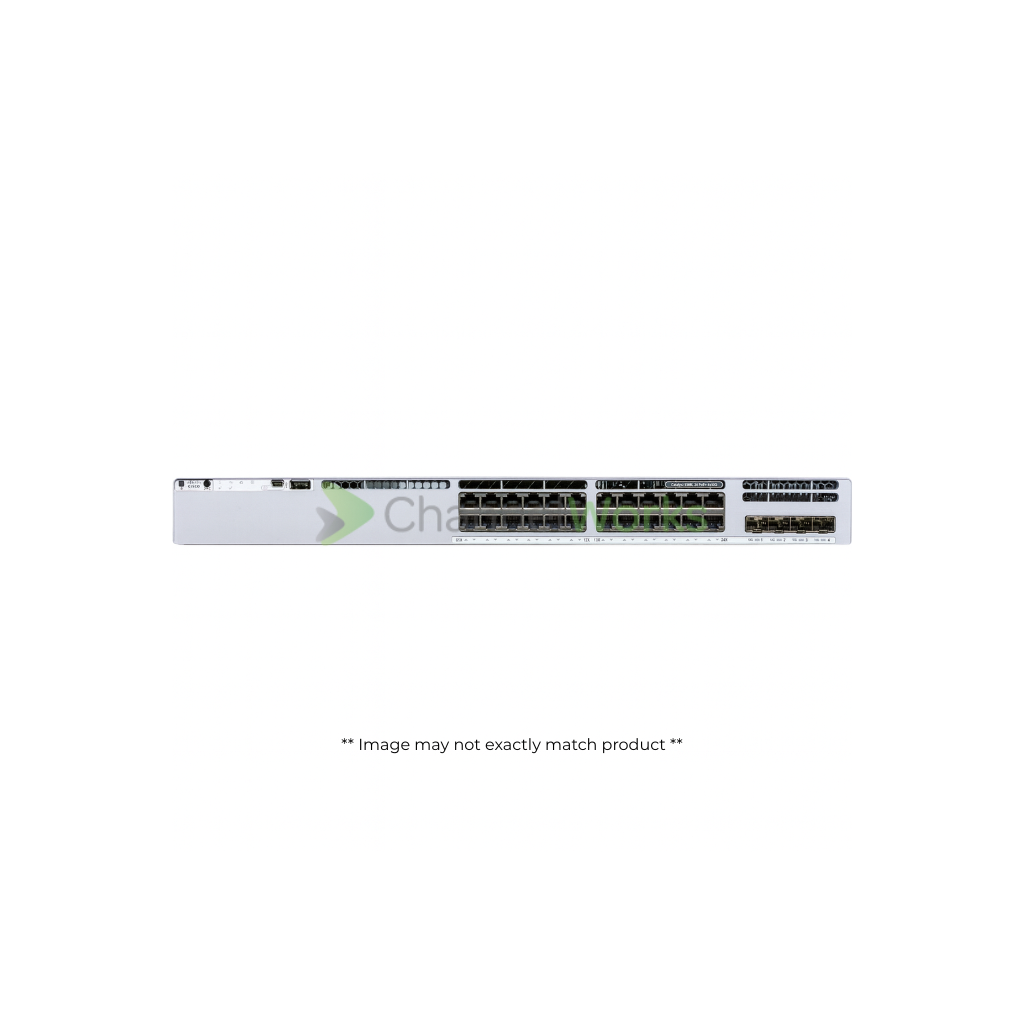

Cisco Catalyst #C9300L-24P-4X-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9300L-24P-4X-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable
SKU:#C9300L-24P-4X-E
The Cisco Catalyst 9300 Series switches represent Cisco's top-tier stackable enterprise platform, engineered for security, IoT, mobility, and cloud environments. As the next iteration of the most widely deployed switching platform in the industry, these switches lay the foundation for Software-Defined Access (SD-Access), Cisco’s flagship enterprise architecture. Offering up to 480 Gbps of stacking bandwidth, the Catalyst 9300 Series provides the highest-density solution available with a flexible uplink architecture. These switches are also the first to be optimized for high-density Wi-Fi 6 and 802.11ac Wave2, enabling unprecedented network scalability.
Equipped with an x86 CPU architecture and expanded memory, the Catalyst 9300 Series is future-ready, capable of hosting containers and running third-party applications and scripts natively within the switch itself. Featuring Cisco StackWise technology, these switches offer flexible deployment options and provide resilient, nonstop forwarding with Stateful Switchover (NSF/SSO), achieving sub-50ms failover for ultimate reliability. The power-efficient Cisco StackPower technology delivers high-density Cisco UPOE and PoE+ ports, ensuring seamless power distribution. Built on the Cisco Unified Access Data Plane 2.0 (UADP 2.0) architecture, these switches offer scalability, higher throughput, and investment protection. Running on Cisco IOS XE, they provide advanced security features and enable seamless IoT convergence with robust programmability.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x console, 1 x management (LAN) RJ-45, 1 x network stack device, 1 x USB 2.0, 24 x 1000Base-T RJ-45 505 W, 4 x 10GBase-X SFP+ uplink
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports Type (2nd): Gigabit SFP (uplink)
Dimensions
Dimensions
Height: 19.2 inch
Weight: 15.01 lbs
Width: 17.5 inch
Depth: 1.7 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 16 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 1588v2, IEEE 802.1ae, IEEE 802.1BA, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Wi-Fi CERTIFIED 6
Features: 802.1x authentication, Access Control List (ACL) support, Blue Beacon LED, Cisco StackWise-320 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Secure Boot, Shaped Round Robin (SRR), Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
PoE Budget: 505 watt
Ports: 24
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: CLI, gRPC, IPv4, IPv6, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, YANG
Routing Protocol: EIGRP, EIGRP for IPv6, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 715 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Product Information
Product Information
Capacity: ACL scale entries: 5120, IPv4 routes: 32000, IPv6 routes: 16000, Multicast scale: 8000, QoS scale entries: 5120, Switched virtual interfaces (SVIs): 1000, VLANs supported: 4094
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate with stacking: 333.33 Mpps, Forwarding rate: 95.23 Mpps, Switching capacity with stacking: 448 Gbps, Switching capacity: 128 Gbps
Ports (2nd) Quantity: 4
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Encryption: 128-bit AES, 256-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 340,710 Hours
Operating Humidity: 5 - 90% (non-condensing)
