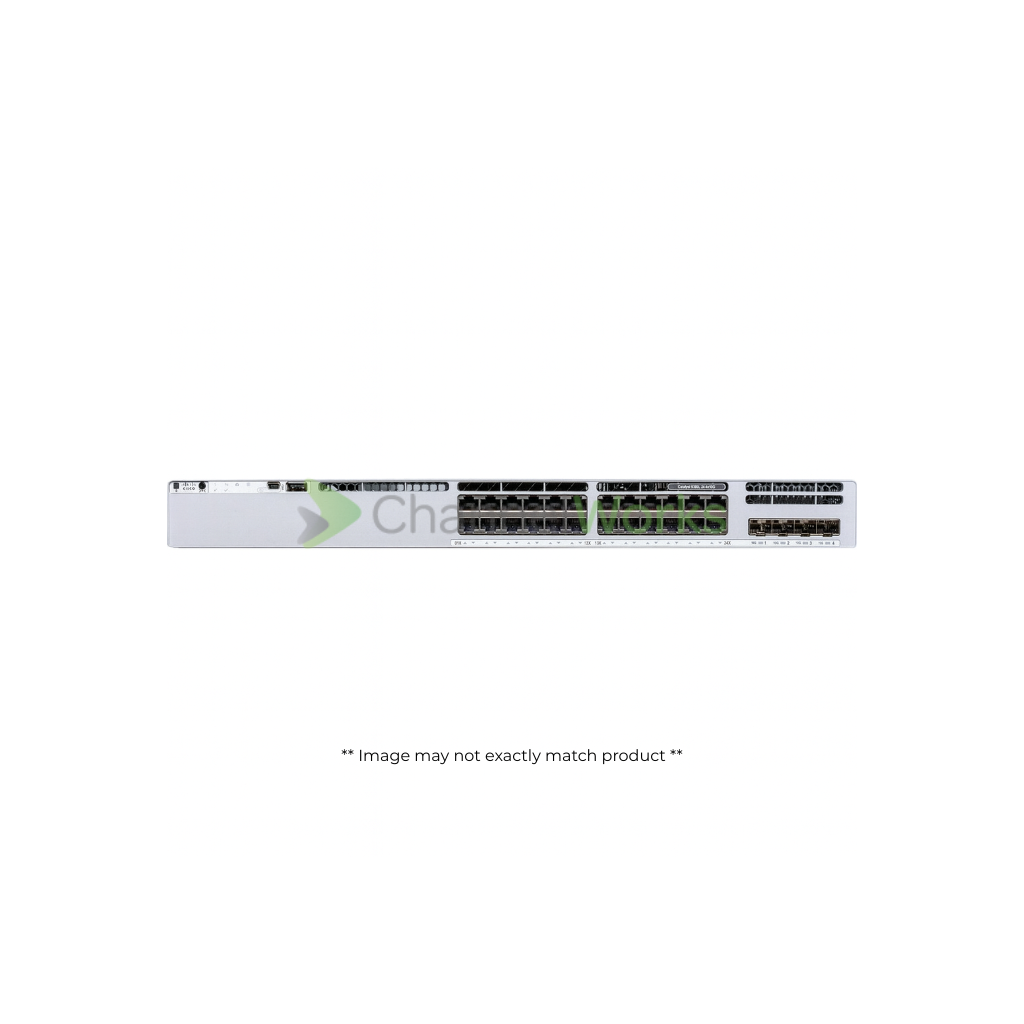

Cisco Catalyst #C9300L-24T-4G-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9300L-24T-4G-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable
SKU:#C9300L-24T-4G-E
The Cisco Catalyst 9300 Series switches are the industry’s leading stackable enterprise switching platform, optimized for security, IoT, mobility, and cloud applications. As the next generation of Cisco’s most widely deployed switches, they are the foundational building blocks for Software-Defined Access (SD-Access), Cisco's premier enterprise architecture. Offering up to 480 Gbps stacking bandwidth, the Catalyst 9300 Series provides the highest-density solution with flexible uplink architecture. It also supports high-density Wi-Fi 6 and 802.11ac Wave2, setting new standards for network scalability.
Equipped with an x86 CPU architecture and increased memory, the Catalyst 9300 Series is future-proof, enabling the hosting of containers and running third-party applications natively within the switch. Designed for Cisco StackWise technology, these switches support nonstop forwarding with Stateful Switchover (NSF/SSO) for a resilient, sub-50-ms stackable solution. With Cisco StackPower and high-density UPOE and PoE+ ports, they deliver efficient power management. Powered by the Cisco UADP 2.0 architecture, the Catalyst 9300 Series offers scalable, high-throughput performance while ensuring long-term investment protection. The modern Cisco IOS XE operating system provides advanced security features and IoT convergence capabilities.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 25, CISPR 32 Class A, CNS 13438, EN 300 386, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, IEC 61000-6-1, KN32, KN35, QCVN, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-2/2015.04, V-3 Class A, V-3/2015.04, VCCI-CISPR 32:2016 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x console, 1 x management (LAN) RJ-45, 1 x network stack device, 1 x USB 2.0, 24 x 1000Base-T RJ-45, 4 x 1000Base-X SFP uplink
Port Quantity: 24
Port Type: 10/100/1000
Ports Type (2nd): Gigabit SFP (uplink)
Dimensions
Dimensions
Height: 16.1 inch
Weight: 14.95 lbs
Width: 17.5 inch
Depth: 1.7 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 16 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 1588v2, IEEE 802.1ae, IEEE 802.1BA, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Wi-Fi CERTIFIED 6
Features: 802.1x authentication, Access Control List (ACL) support, Blue Beacon LED, Cisco StackWise-320 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Secure Boot, Shaped Round Robin (SRR), Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
Ports: 24
Product Type: Switch
Remote Management: CLI, gRPC, IPv4, IPv6, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, YANG
Routing Protocol: EIGRP, EIGRP for IPv6, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 350 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Product Information
Product Information
Capacity: ACL scale entries: 5120, FNF entries: 64000, IPv4 routes: 32000, IPv6 routes: 16000, Multicast scale: 8000, Packet buffer size: 16 MB, QoS scale entries: 5120, Switched virtual interfaces (SVIs): 1000, Virtual networks: 64, VLANs supported: 4094
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate with stacking: 279.76 Mpps, Forwarding rate: 41.66 Mpps, Stacking bandwidth: 320 Gbps, Switching capacity with stacking: 376 Gbps, Switching capacity: 56 Gbps
Ports (2nd) Quantity: 4
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Built-in Devices: RFID tag
Encryption: 128-bit AES, 256-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 395,800 Hours
Operating Humidity: 5 - 90% (non-condensing)
