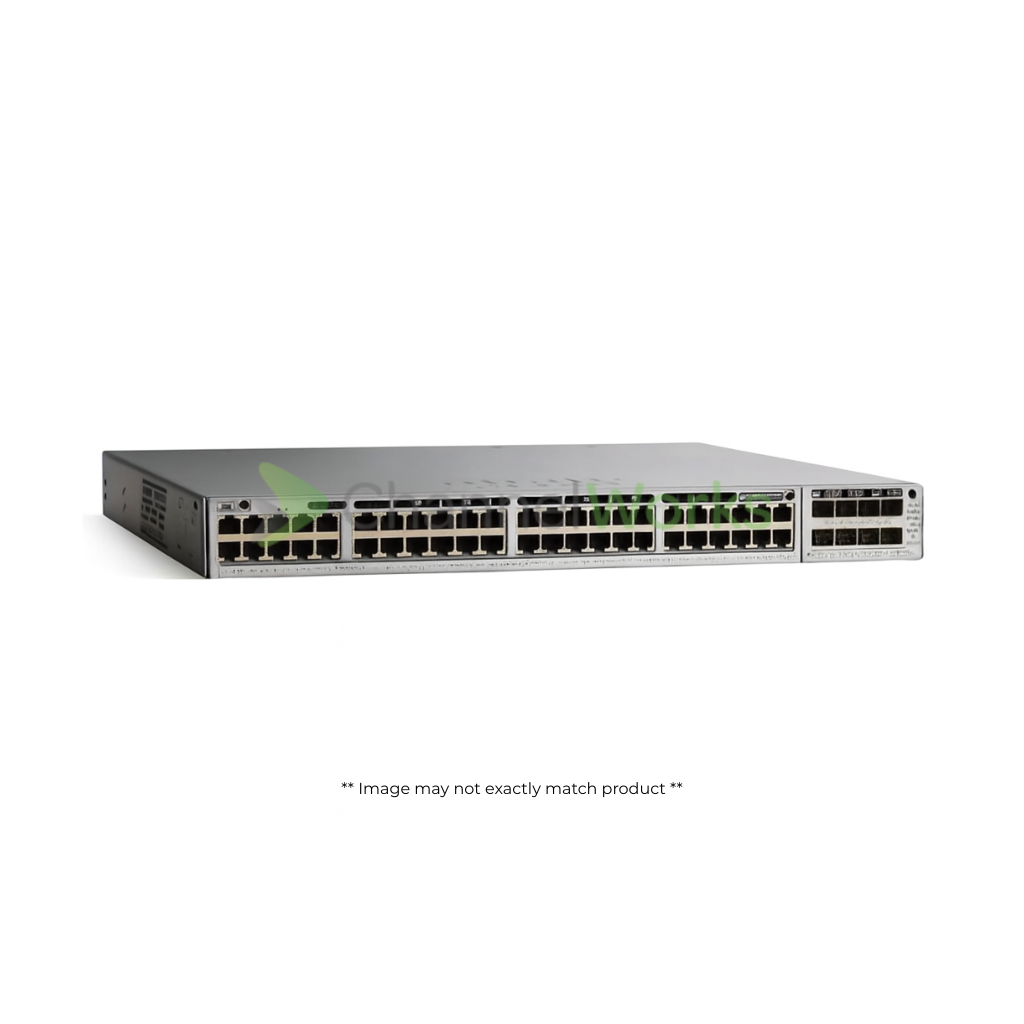

Cisco Catalyst #C9300-48P-E - Network Essentials - Switch - 48 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9300-48P-E - Network Essentials - Switch - 48 Ports - Managed - Rack-Mountable
SKU:#C9300-48P-E
The Cisco Catalyst™ 9300 48-Port Switch is ideal for establishing Ethernet networks across IT and various industries, offering stacking bandwidth of 480 Gbps for seamless data transfer. Designed for easy installation in offices and data centers, this rack-mountable and stackable switch features a hot-plug capability, ensuring no server downtime during installation or replacement.
Equipped with x86 CPU architecture, the switch can host containers and run numerous apps. Its Power Over Ethernet (PoE) feature eliminates the need for nearby electrical units, making it ideal for remote applications. The USB 2.0 port allows for system image uploads and configuration adjustments. With a programmable architecture, this switch automates tasks to save time, while Precision Time Protocol ensures efficient network synchronization. It comes with a limited lifetime warranty, providing technical support and replacements.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x USB 2.0, 48 x 1000Base-T RJ-45 PoE+
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Dimensions
Dimensions
Height: 1.7 inch
Height (Rack Units): 1
Weight: 16.73 lbs
Width: 17.5 inch
Depth: 17.5 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 16 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), Flexible NetFlow (FNF), FTP client, Full duplex mode, Integrated Wireshark, Management Information Base (MIB), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Trunking, VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
PoE Budget: 437 watt
Ports: 48
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IS-IS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Hot-Plug: Hot-plug
Power Provided: 715 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Product Information
Product Information
Capacity: Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 190.48 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Software
Software
Software Type: Cisco IOS Universal
Technical Information
Technical Information
Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 277,770 Hours
Operating Humidity: 5 - 90% (non-condensing)
