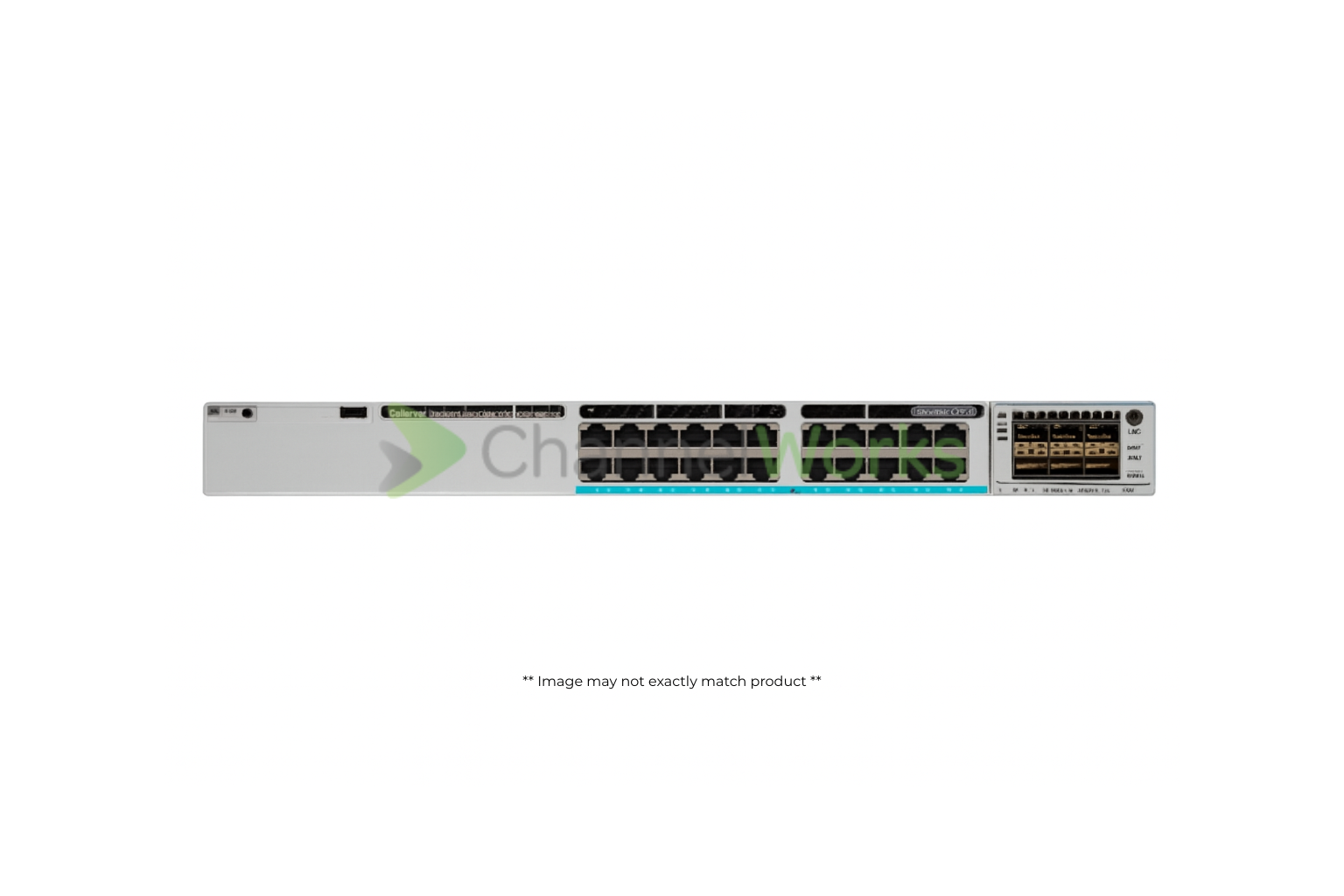

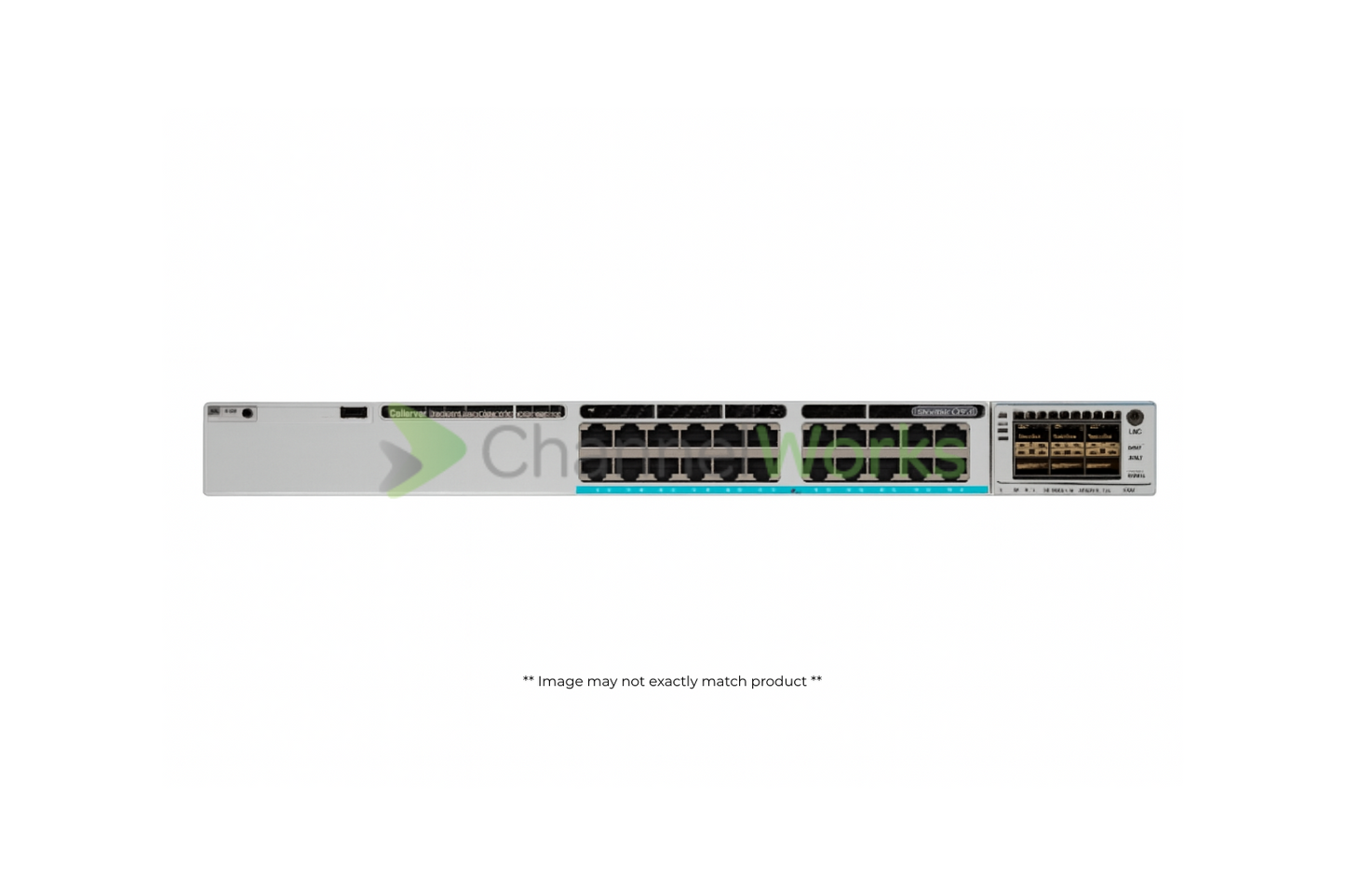

Cisco Catalyst #C9300-24P-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9300-24P-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable
SKU:#C9300-24P-E
Optimize network performance with the Cisco® Catalyst™ 9300 Network Essentials Switch. With a 128 Gbps switching capacity and 154.76 Mpps processing power, it supports high-density networks and smooth data flow. The device offers a 480 Gbps stacking bandwidth for superior performance and remote management protocols like SNMP for seamless connectivity. It also features a 16MB packet buffer for rich multimedia content delivery and supports Layer 3 static and dynamic routing for VLAN and IP communications.
Equipped with Cisco StackPower and intelligent power management, this switch ensures efficient power use in stacked setups with redundancy. With 9198 jumbo frame support to reduce overheads and PoE+ capabilities across 24 ports, it integrates power and data flow for a streamlined network. The switch is rack-mountable, space-saving, and comes with a limited lifetime warranty for peace of mind.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
Connectivity
Connectivity
Interface Provided: 1 x USB 2.0, 48 x 1000Base-T RJ-45 PoE+
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Dimensions
Dimensions
Height: 1.7 inch
Height (Rack Units): 1
Weight: 16.31 lbs
Width: 17.5 inch
Depth: 17.5 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 16 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), Flexible NetFlow (FNF), FTP client, Full duplex mode, Integrated Wireshark, Management Information Base (MIB), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Trunking, VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
PoE Budget: 445 watt
Ports: 24
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IS-IS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 715 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Product Information
Product Information
Capacity: Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 154.76 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 299,000 Hours
Operating Humidity: 5 - 90% (non-condensing)
Operating System Required: Cisco IOS Universal
