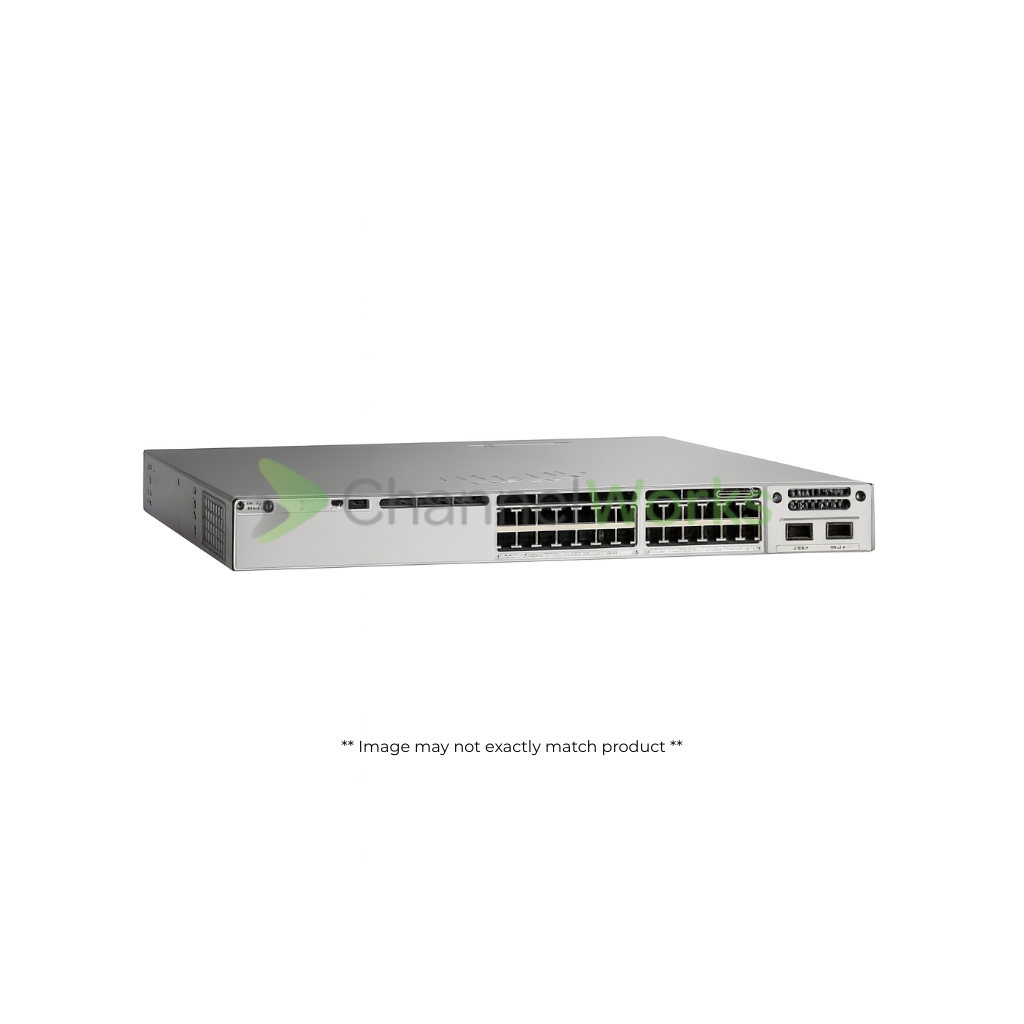

Cisco Catalyst #C9300-24T-E - Network Essentials - Switch - 24 Ports - Managed - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A

Interface Provided: 1 x USB 2.0, 48 x 1000Base-T RJ-45
Port Quantity: 24
Port Type: 10/100/1000

Height: 1.7 inch
Height (Rack Units): 1
Weight: 16.03 lbs
Width: 17.5 inch
Depth: 17.5 inch

Expansion Slots: 1 (total) / 1 (free) x expansion slot

Flash Memory Installed: 16 GB
RAM Installed: 8 GB

Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), Flexible NetFlow (FNF), FTP client, Full duplex mode, Integrated Wireshark, Management Information Base (MIB), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Trunking, VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
Ports: 24
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IS-IS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 350 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional

Capacity: Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 154.76 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 314,790 Hours
Operating Humidity: 5 - 90% (non-condensing)
Operating System Required: Cisco IOS Universal
