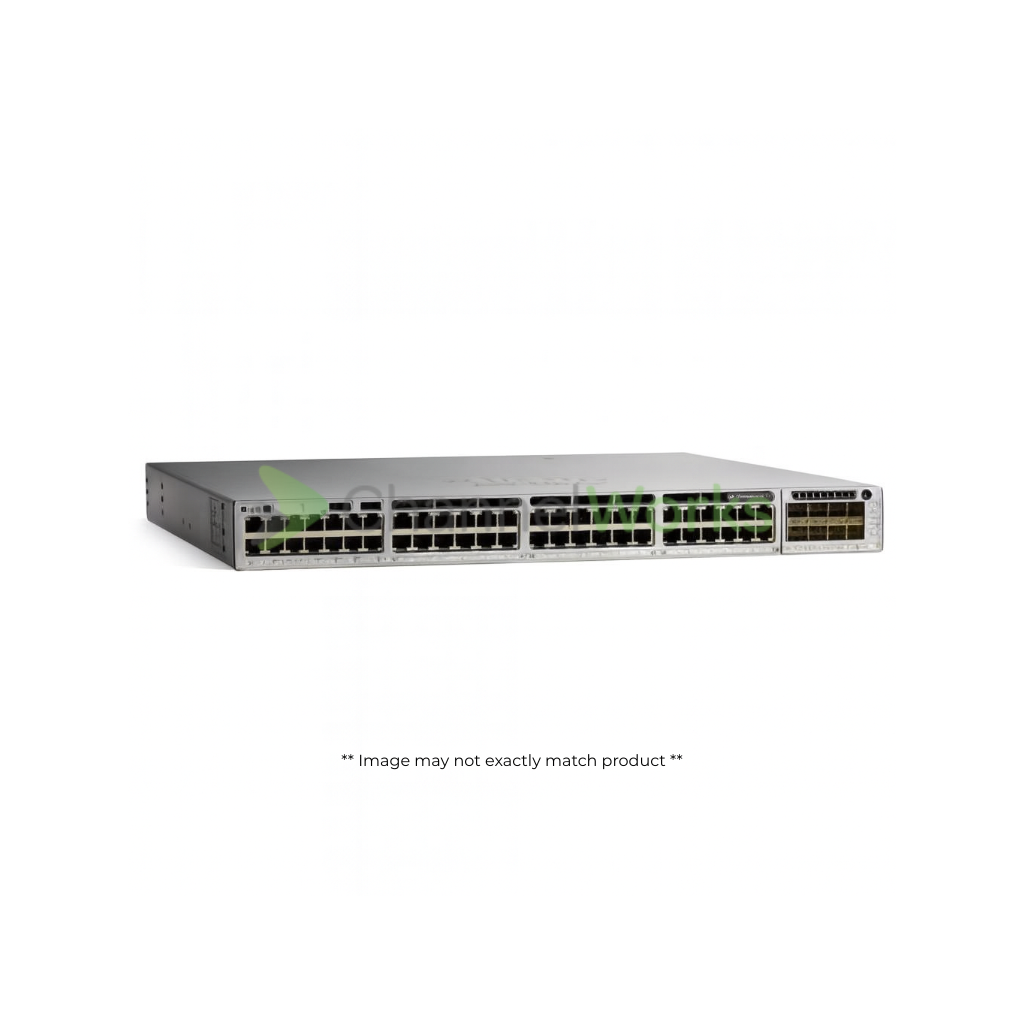

Cisco Catalyst #C9300-48U-A - Network Advantage - Switch - 48 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9300-48U-A - Network Advantage - Switch - 48 Ports - Managed - Rack-Mountable
SKU:#C9300-48U-A
Boost productivity and minimize network interference with the Cisco® Catalyst™ 9300 Series switch—designed to meet the demands of modern enterprise networks. With a switching capacity of 128 Gbps, a forwarding rate of 190.48 Mpps, and stacking bandwidth up to 480 Gbps, this switch delivers high performance for bandwidth-intensive applications.
It includes Application Visibility and Control (AVC), allowing IT teams to monitor app performance and enforce business-intent policies across the network. The 48-port configuration supports a generous PoE budget of up to 822 watts—enough to power devices like IP phones, wireless access points, and security cameras.
Built-in access control lists (ACLs) enhance security by managing traffic flow and restricting unauthorized access. Its x86 CPU architecture enables the integration of third-party applications, while support for up to 1600 IPv6 routes simplifies large-scale deployments. With a compact, rack-mountable design, this Layer 3 switch is a smart choice for space-conscious environments.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x USB 2.0, 48 x 1000Base-T RJ-45 UPOE
Port Quantity: 48
Port Type: 10/100/1000 (UPOE)
Dimensions
Dimensions
Height: 1.7 inch
Height (Rack Units): 1
Weight: 17.02 lbs
Width: 17.5 inch
Depth: 17.5 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 16 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
PoE Budget: 822 watt
Ports: 48
Power Over Ethernet (PoE): UPOE
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 1100 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Product Information
Product Information
Capacity: Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 190.48 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Software
Software
Software Type: 25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE C9300 Advantage Add-On Term, Cisco ONE C9300 DNA Advantage 48-port Term license, Cisco ONE StealthWatch License Term - 25 Flow Licenses
Technical Information
Technical Information
Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 227,410 Hours
Operating Humidity: 5 - 90% (non-condensing)
Operating System Required: Cisco IOS Universal
