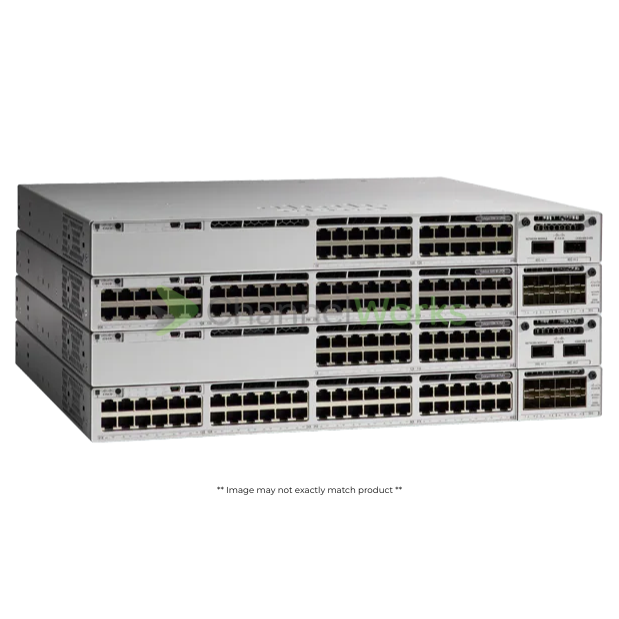

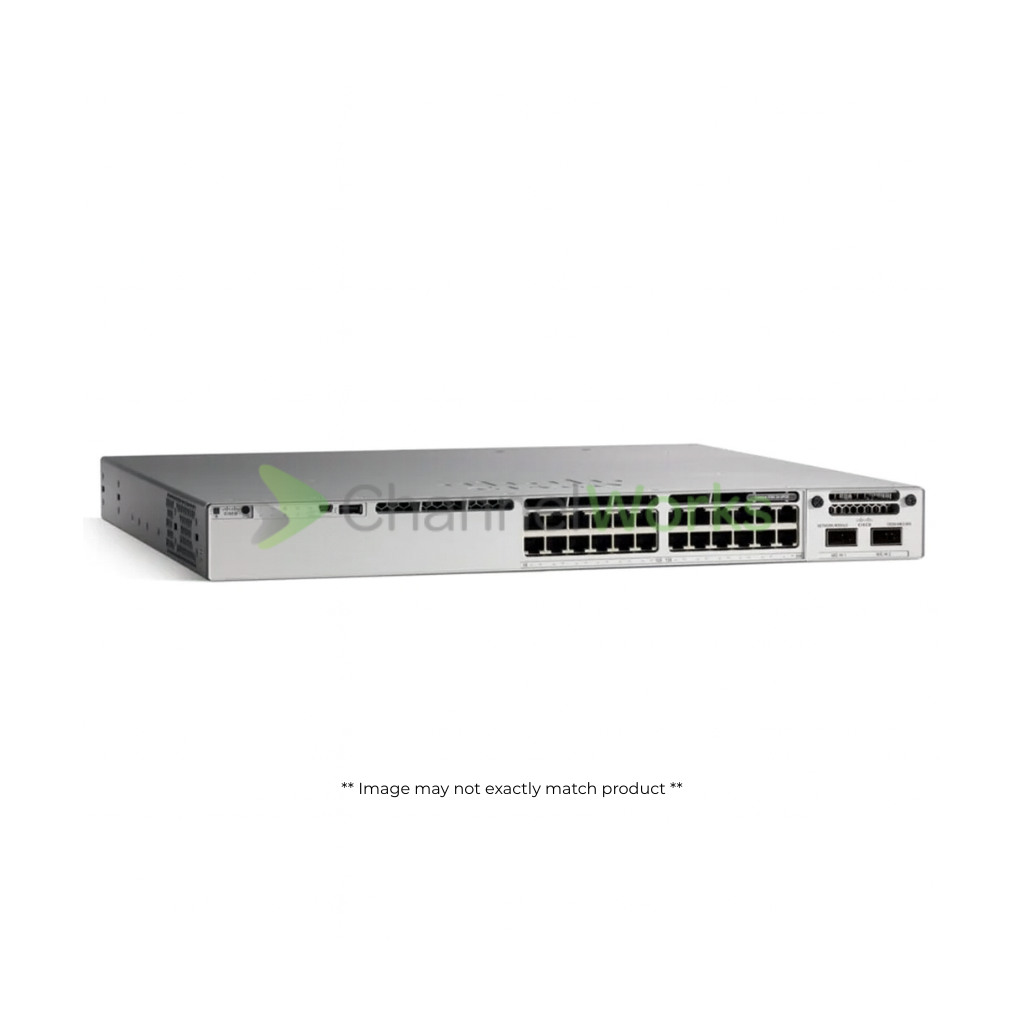

Cisco Catalyst #C9300-24UB-A - Network Advantage - Switch - 24 Ports - Managed - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 1 x USB 2.0, 24 x 1000Base-T RJ-45 UPOE
Port Quantity: 24
Port Type: 10/100/1000 (UPOE)

Height: 1.7 inch
Height (Rack Units): 1
Weight: 16.62 lbs
Width: 17.5 inch
Depth: 16.1 inch

Expansion Slots: 1 (total) / 1 (free) x expansion slot

Flash Memory Installed: 16 GB
RAM Installed: 8 GB

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Features: 3 fans, 32MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 64K entries
Manageable: Yes
PoE Budget: 830 watt
Ports: 24
Power Over Ethernet (PoE): UPOE
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 1100 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional

Capacity: FNF entries: 128000, IPv4 routing table entries: 64000, IPv6 routing table entries: 32000, Multicast routes: 16000, QoS scale entries: 18000, Routed ports: 448, Switched virtual interfaces (SVIs): 1000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate with stacking: 511.9 Mpps, Forwarding rate: 154.76 Mpps, Stacking bandwidth: 688 Gbps, Switching capacity: 208 Gbps

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 354,300 Hours
Operating Humidity: 5 - 90% (non-condensing)
Operating System Required: Cisco IOS Universal
