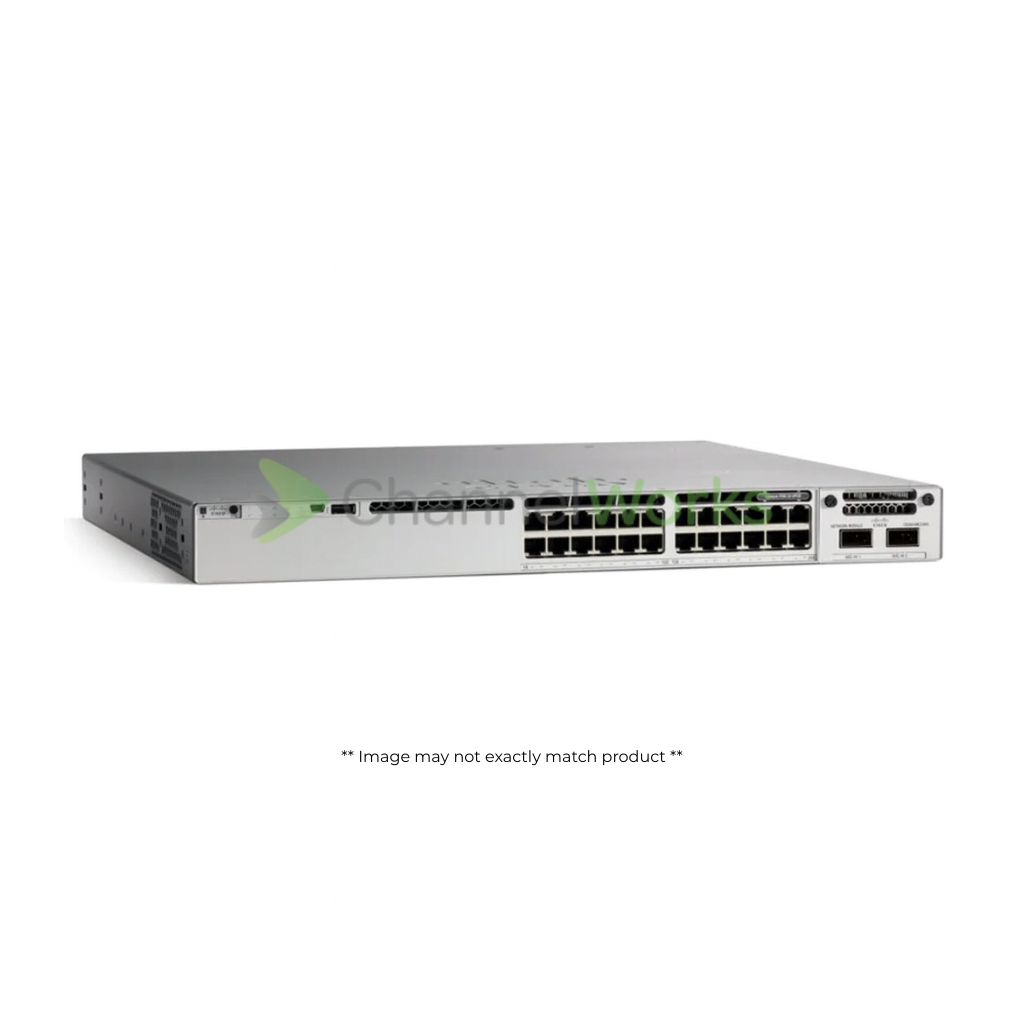

Cisco Catalyst #C9300-24T-A - Network Advantage - Switch - 24 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9300-24T-A - Network Advantage - Switch - 24 Ports - Managed - Rack-Mountable
SKU:#C9300-24T-A
The Cisco® Catalyst™ 9300 Network Advantage Switch offers advanced stackable switching, ideal for managing high-performance data. With support for Wave 2 access points, it efficiently controls access points across various unit switches. Powered by an x86 CPU, this switch includes 8 GB of memory, 16 GB flash storage, and slots for USB 2.0 and 3.0 SSDs for external storage. It features Precision Time Protocol (IEEE 1588v2) for accurate clock synchronization, ensuring optimal time and frequency distribution over the network.
Running on Cisco IOS® XE, the Catalyst 9300 supports complex programs like NETCONF, Python, RESTCONF, YANG, streaming telemetry, and bug-fix patching. This 24-port managed switch comes with a limited lifetime warranty, including 90 days of phone consulting. Its internal power supply provides 350 watts and operates within a voltage range of AC 120-230V at 50-60 Hz, making it adaptable to various environments. The device functions in temperatures from 23°F to 113°F, ensuring reliable performance in diverse conditions.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
Connectivity
Connectivity
Interface Provided: 1 x USB 2.0, 24 x 1000Base-T RJ-45
Port Quantity: 24
Port Type: 10/100/1000
Dimensions
Dimensions
Height: 1.7 inch
Height (Rack Units): 1
Weight: 16.03 lbs
Width: 17.5 inch
Depth: 17.5 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 16 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
Ports: 24
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Status Indicators: Status
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Provided: 350 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Product Information
Product Information
Capacity: Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 154.76 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 314,790 Hours
Operating Humidity: 5 - 90% (non-condensing)
Operating System Required: Cisco IOS Universal
