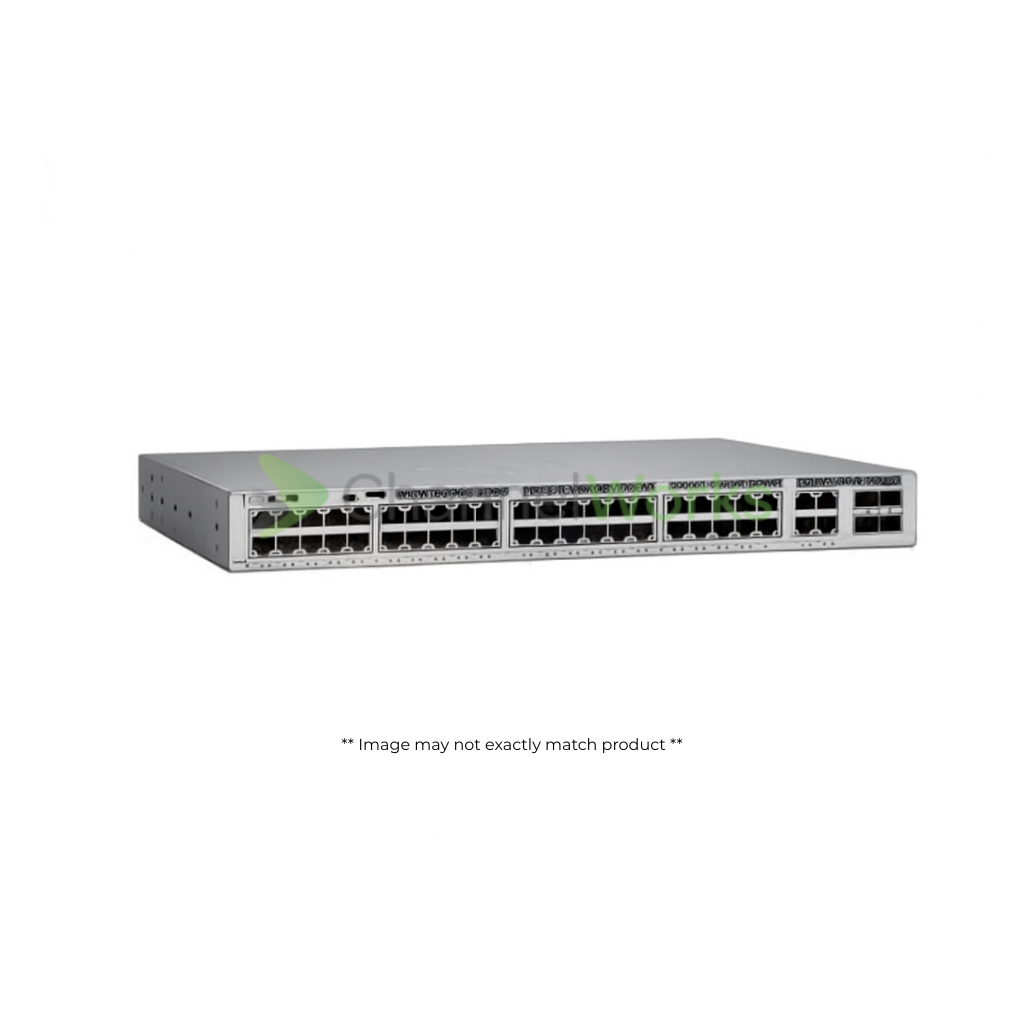

Cisco Catalyst #C9200L-48P-4X-E - Network Essentials - Switch - 48 Ports - Managed - Rack-Mountable
Cisco Catalyst #C9200L-48P-4X-E - Network Essentials - Switch - 48 Ports - Managed - Rack-Mountable
SKU:#C9200L-48P-4X-E
Designed to make IT simpler and more efficient, the Cisco Catalyst 9200 Series switch helps reduce operational costs through automation, built-in intelligence, and expert-driven features. It offers end-to-end protection for hardware, software, and data, along with the resiliency needed to support continuous business operations.
The C9200L-48P-4X-E model includes 48 1G PoE+ ports and four 10G SFP+ fixed uplinks, providing high-speed connectivity for demanding enterprise environments. A license is required to unlock advanced functionality and management features.
Certifications & Listings
Certifications & Listings
Compliant Standards: AES-128, AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32, KN35, Plug and Play, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45 PoE+
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports Type (2nd): 10 Gigabit SFP+
Dimensions
Dimensions
Height: 11.3 inch
Weight: 12.13 lbs
Width: 17.5 inch
Depth: 1.7 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 4 GB
RAM Installed: 2 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: 6MB packet buffer, Blue Beacon LED, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, EIGRP Stub Routing, Embedded Event Manager (EEM), Energy-Efficient Ethernet (EEE), First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Source-Specific Multicast (SSM), Superior QoS, Switched Port Analyzer (SPAN)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
Manageable: Yes
Ports: 48
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: MSTP, OSPF, Policy-based routing (PBR), RIP, VRRP
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Power Supplies Supported: 2
Required Voltage: AC 100-240 volt
Product Information
Product Information
Capacity: ACL scale entries: 1500, FNF entries: 16000, IPv4 routes: 11000, IPv4 routing table entries: 3000, IPv6 routing table entries: 1500, MAC addresses: 16000, Multicast scale: 1000, Queues per port (egress): 8, Switched virtual interfaces (SVIs): 512, Virtual networks: 1
Device Type: Internal power supply (not installed)
Packaged Quantity: 1
Performance: Forwarding rate: 261.9 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 176 Gbps
Ports (2nd) Quantity: 4
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Built-in Devices: RFID tag
MTBF: 346,270 Hours
