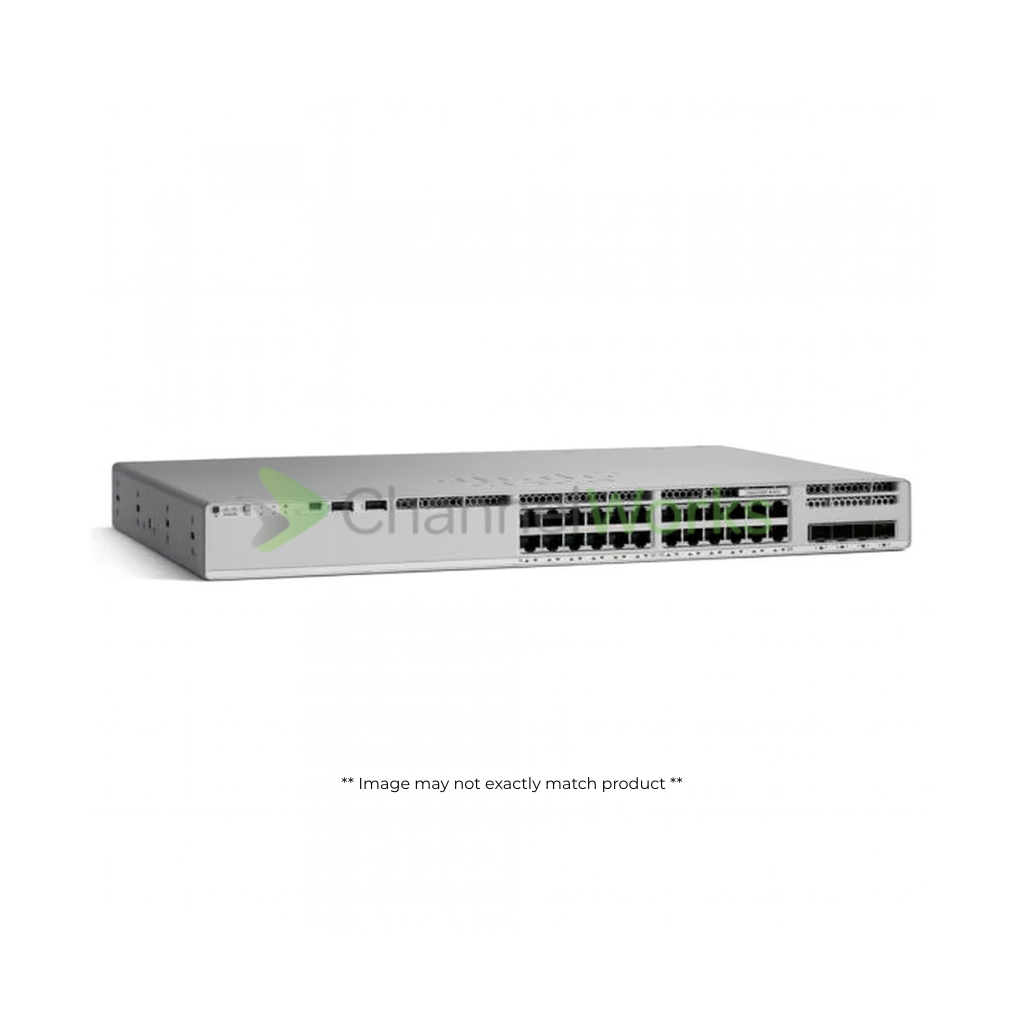

Cisco Catalyst #C9200L-24T-4X-E - Network Essentials - Switch - 24 Ports - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 1 x console RJ-45, 1 x management (LAN) RJ-45, 1 x network stack device, 24 x 1000Base-T RJ-45, 4 x 10GBase-X SFP+ uplink
Port Quantity: 24
Port Type: 10/100/1000
Ports Type (2nd): 10 Gigabit SFP+ (uplink)

Height: 11.3 inch
Weight: 11.02 lbs
Width: 17.5 inch
Depth: 1.7 inch

Flash Memory Installed: 4 GB
RAM Installed: 2 GB

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: 6MB packet buffer, 802.1x authentication, Cisco StackWise Technology, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), NetFlow, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Switched Port Analyzer (SPAN)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 16000 entries
Ports: 24
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: EIGRP, EIGRP for IPv6, MSTP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Supplies Supported: 2
Redundant Power Supply: Optional
Required Voltage: AC 100-240 volt

Capacity: ACL scale entries: 1500, FNF entries: 16000, IPv4 routes: 11000, IPv4 routing table entries: 3000, IPv6 routing table entries: 1500, Multicast scale: 1000, QoS hardware queues per port: 8, Switched virtual interfaces (SVIs): 512, Virtual networks: 1, VLANs supported: 1024
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 190.4 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 128 Gbps
Ports (2nd) Quantity: 4

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Humidity Range Storage: 5 - 90% (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 525,990 Hours
Operating Humidity: 5 - 90% (non-condensing)
