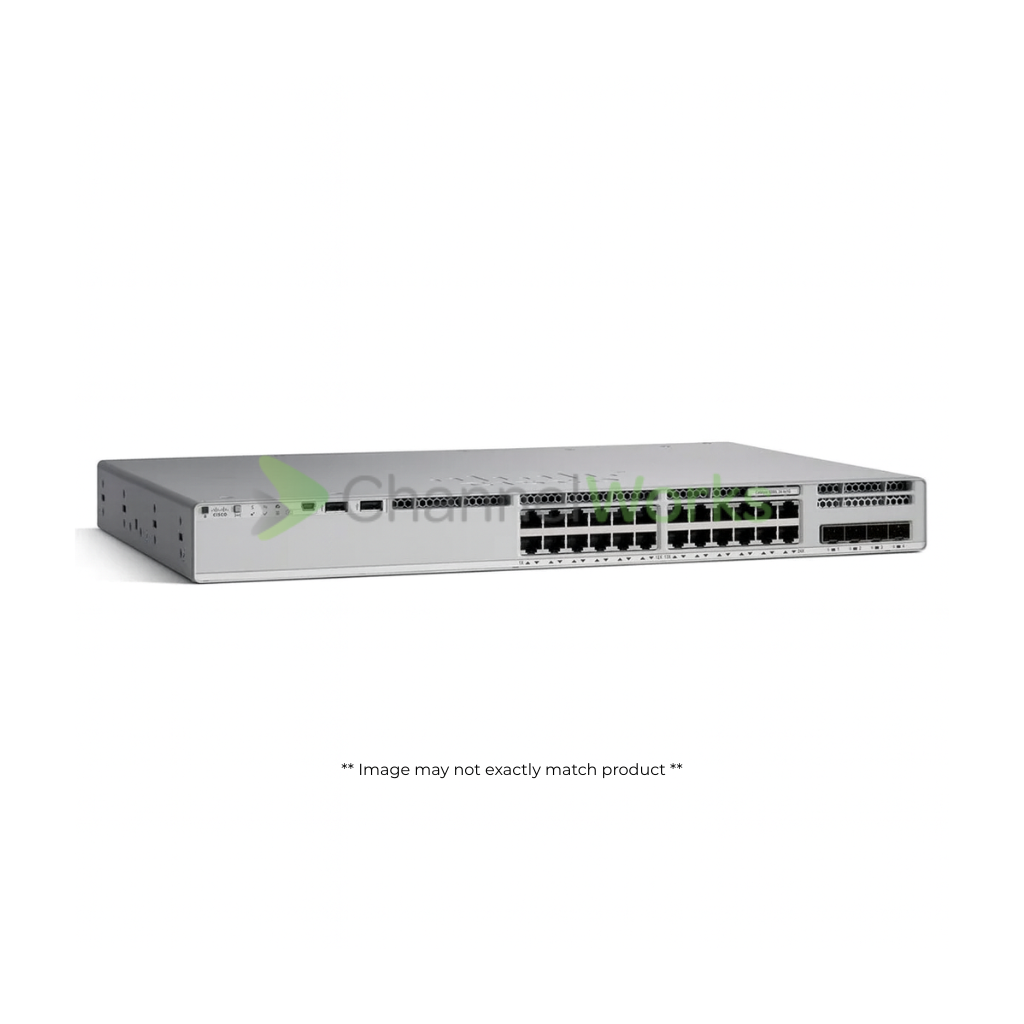

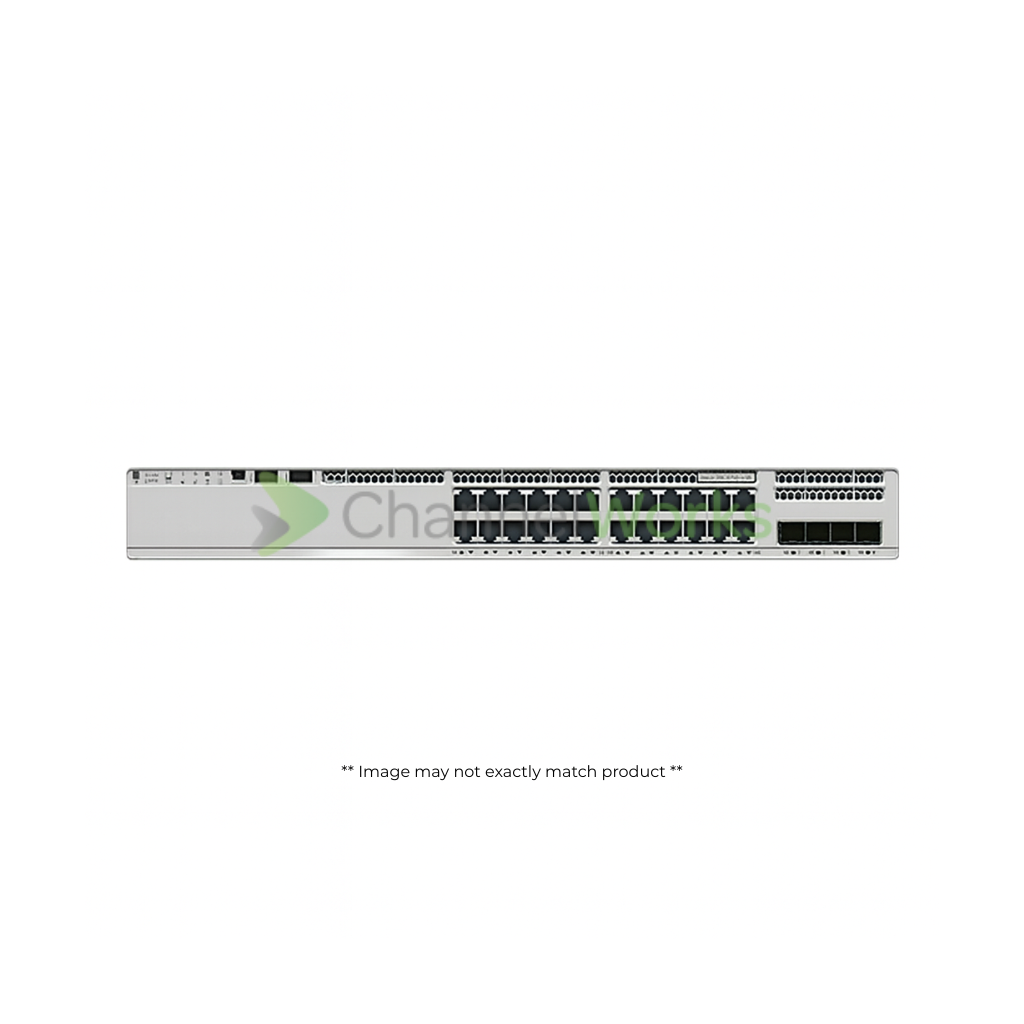

Cisco Catalyst #C9200L-24P-4G-A - Network Advantage - Switch - 24 Ports - Rack-Mountable
Cisco Catalyst #C9200L-24P-4G-A - Network Advantage - Switch - 24 Ports - Rack-Mountable
SKU:#C9200L-24P-4G-A
The Cisco Catalyst 9200 Series switch is designed to simplify network complexity, optimize IT operations, and lower total cost of ownership by integrating intelligent automation with proven Cisco expertise. Engineered for enterprise-grade performance, this switch offers robust security features that safeguard hardware, software, and all transmitted data, ensuring end-to-end protection. Its built-in resiliency helps maintain seamless business continuity, minimizing downtime and disruptions.
The C9200L-24P-4G-A model includes 24 1G PoE+ ports and four fixed 10G SFP+ uplinks, delivering flexible connectivity for growing network demands. This switch requires a valid Cisco license to activate its full feature set, including advanced management and security capabilities.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x console RJ-45, 1 x management (LAN) RJ-45, 1 x network stack device, 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1000Base-X SFP uplink
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports Type (2nd): Gigabit SFP (uplink)
Dimensions
Dimensions
Height: 11.3 inch
Weight: 9.59 lbs
Width: 17.5 inch
Depth: 1.7 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 4 GB
RAM Installed: 2 GB
Network & Communication
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: 6MB packet buffer, 802.1x authentication, Cisco StackWise Technology, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), NetFlow, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Switched Port Analyzer (SPAN)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 16000 entries
PoE Budget: 740 watt
Ports: 24
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: EIGRP, EIGRP for IPv6, HSRP, IS-IS, MSDP, MSTP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Supplies Supported: 2
Redundant Power Supply: Optional
Required Voltage: AC 100-240 volt
Product Information
Product Information
Capacity: ACL scale entries: 1500, FNF entries: 16000, IPv4 routes: 11000, IPv4 routing table entries: 3000, IPv6 routing table entries: 1500, Multicast scale: 1000, QoS hardware queues per port: 8, Switched virtual interfaces (SVIs): 512, Virtual networks: 1, VLANs supported: 1024
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 83.33 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 56 Gbps
Ports (2nd) Quantity: 4
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Humidity Range Storage: 5 - 90% (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 392,210 Hours
Operating Humidity: 5 - 90% (non-condensing)
