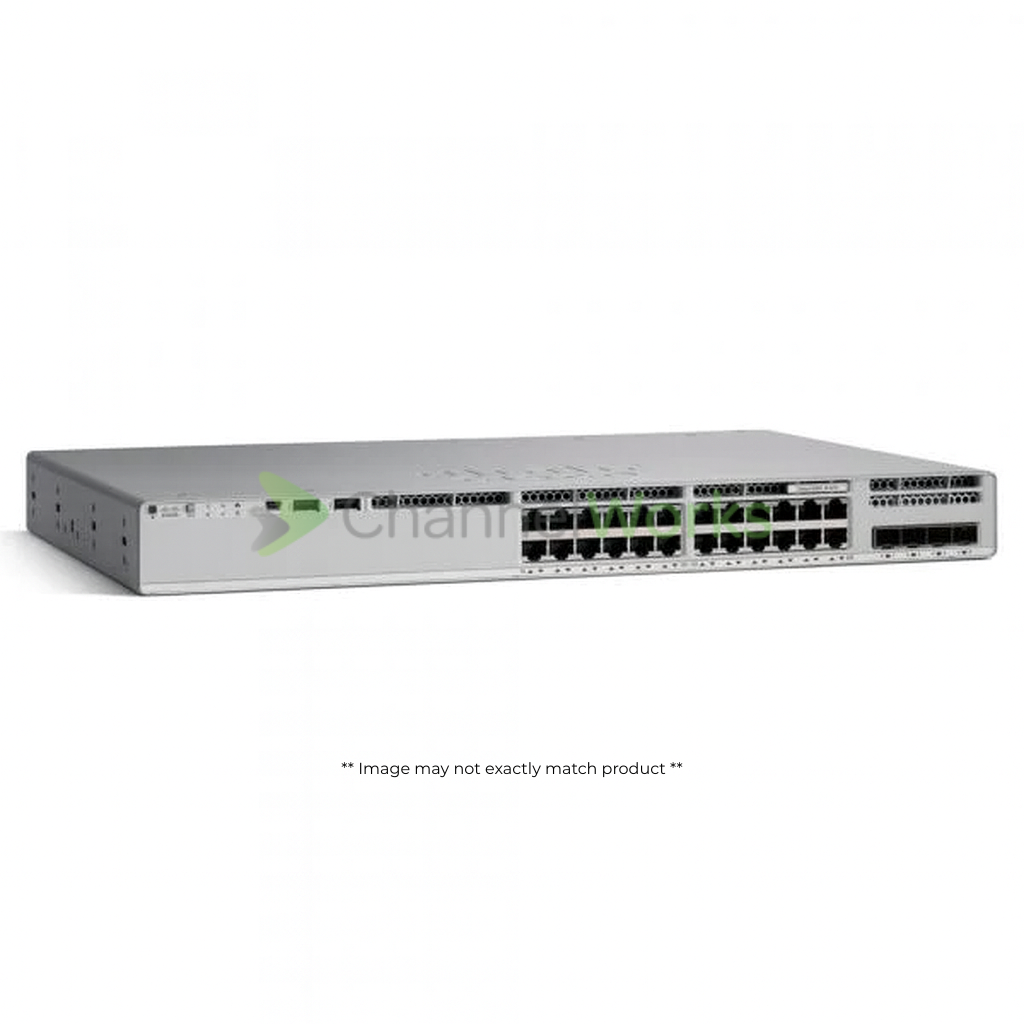

Cisco Catalyst #C9200-24P-A - Network Advantage - Switch - 24 Ports - Smart - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, ICES-003 Class A, IEC 60950-1, KN32, KN35, Plug and Play, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)

Height: 13.8 inch
Weight: 12.13 lbs
Width: 1.7 inch
Depth: 17.5 inch

Flash Memory Installed: 4 GB
RAM Installed: 4 GB

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: Blue Beacon LED, Built-in ASIC, Cisco StackWise Technology, Control plane protection (CoPP), DNA support, Embedded Event Manager (EEM), First Hop Security (FHS), Flexible NetFlow (FNF), Location ID Separation Protocol (LISP), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, Security Group Tag (SGT) caching, Superior QoS, Virtual Extensible LAN (VXLAN), Virtual Routing and Forwarding (VRF)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
Ports: 24
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: NETCONF, RESTCONF
Routing Protocol: EIGRP, HSRP, IS-IS, MSDP, OSPF, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Smart: Yes
Stackable: Stackable
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Supplies Supported: 2
Redundant Power Supply: Optional
Required Voltage: AC 100-240 volt

Capacity: ACL scale entries: 1600, IPv4 routing table entries: 4000, IPv6 routing table entries: 2000, Packet buffer size: 6 MB, Switched virtual interfaces (SVIs): 1000, Virtual networks: 4, VLAN IDs: 4096
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 190.4 Mpps, Stacking bandwidth: 160 Gbps, Switching bandwidth: 128 Gbps

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Software Type: Cisco Network Advantage

Built-in Devices: RFID tag
Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 422,310 Hours
Operating Humidity: 5 - 90% (non-condensing)
