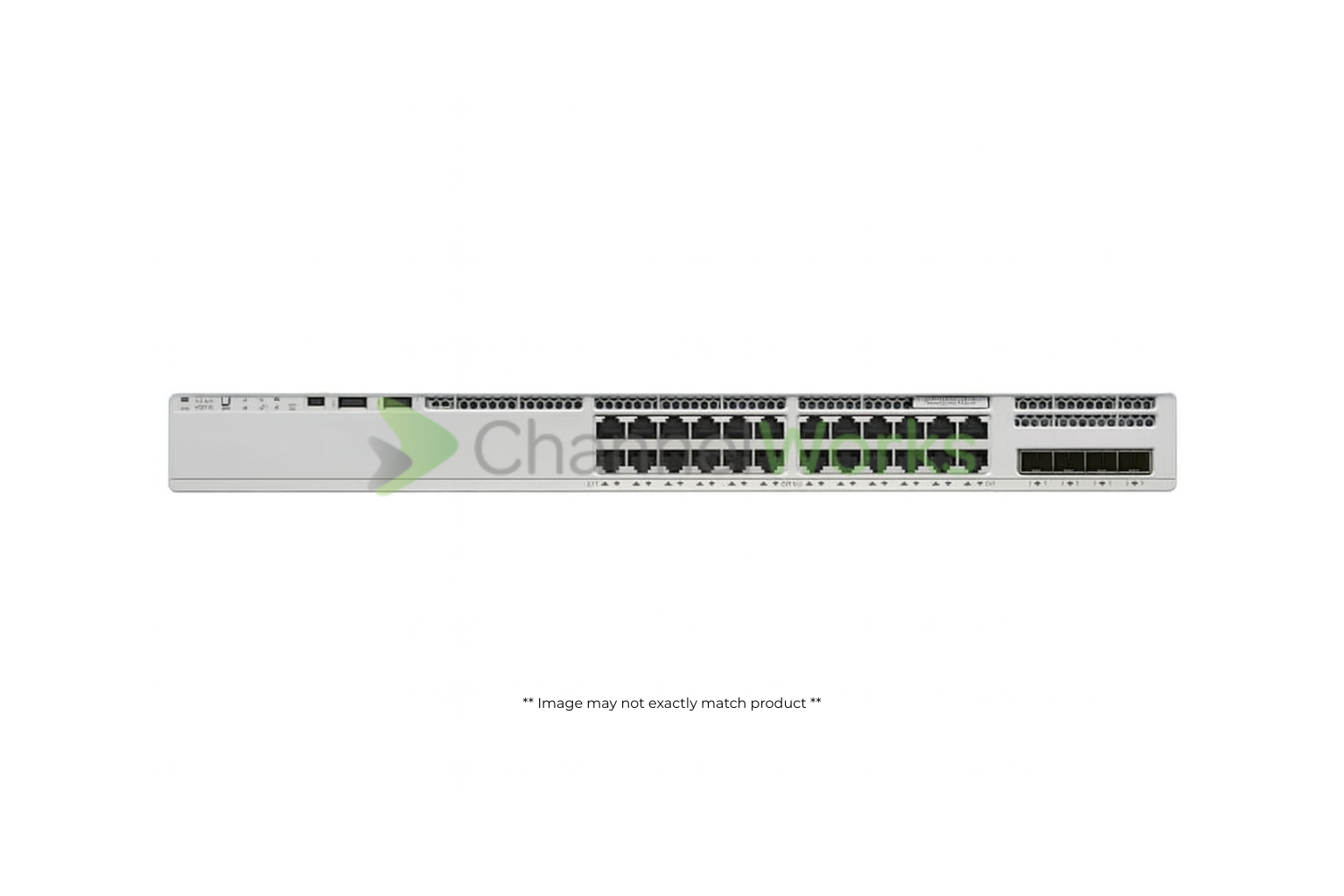

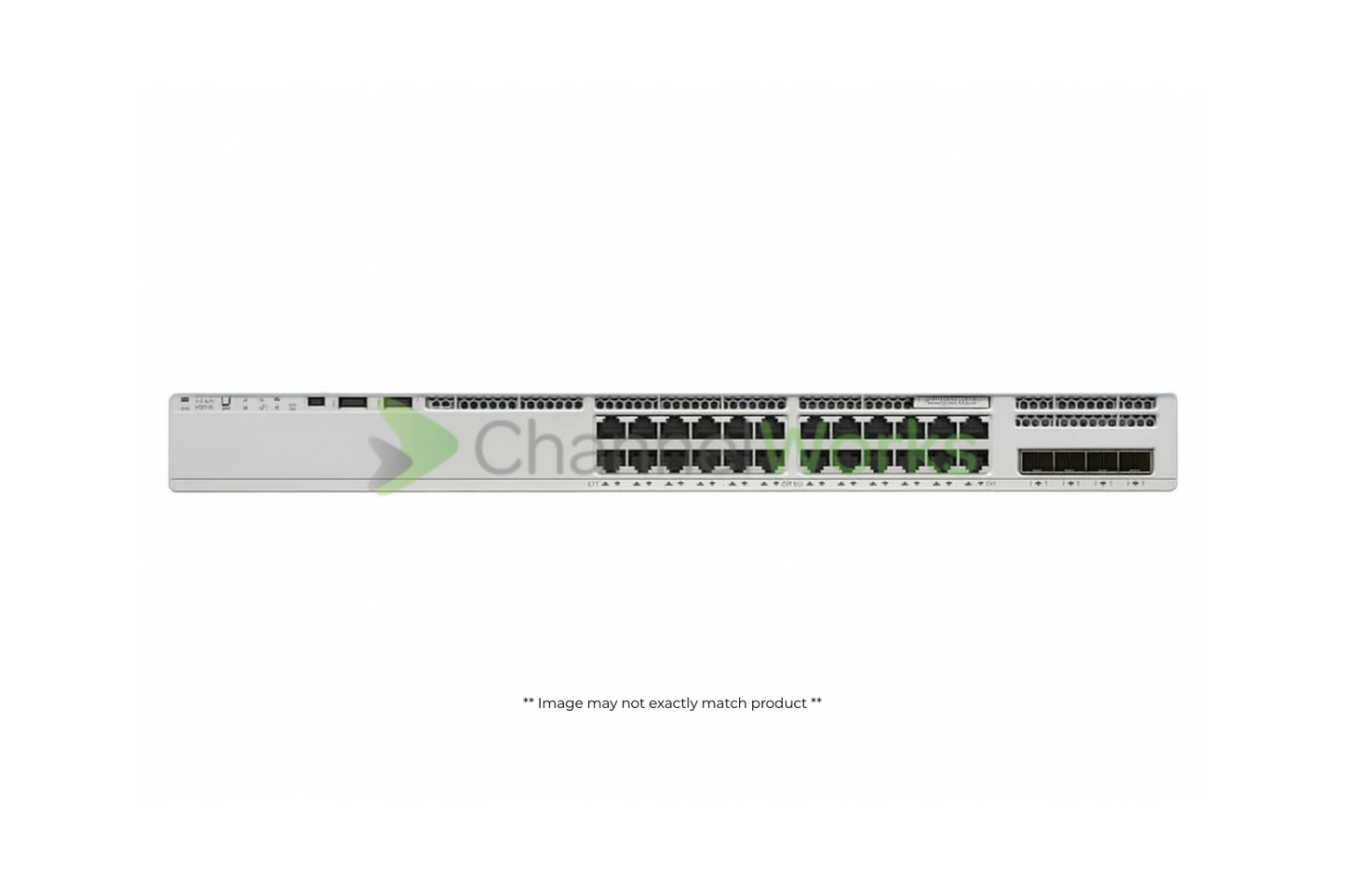

Cisco Catalyst #C9200-24PXG-A - Network Advantage - Switch - 24 Ports - Managed - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 1 x console RJ-45, 1 x management (LAN) RJ-45, 1 x network stack device, 16 x 1000Base-T RJ-45 PoE+, 8 x 100/1000/2.5G/5G/10GBase-T RJ-45
Port Quantity: 24
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports Type (2nd): 10/100/1000 (PoE+)

Height: 13.8 inch
Weight: 11.99 lbs
Width: 17.5 inch
Depth: 1.7 inch

Flash Memory Installed: 4 GB
RAM Installed: 2 GB

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: ARP support, Cisco StackWise-80 technology, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), Location ID Separation Protocol (LISP), MACsec support, Management Information Base (MIB), Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Security Group Tag (SGT) caching, Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Switched Port Analyzer (SPAN), Virtual Extensible LAN (VXLAN), Virtual Routing and Forwarding (VRF)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 16000 entries
Manageable: Yes
PoE Budget: 370 watt
Ports: 24
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: CLI, IPv4, IPv6, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, YANG
Routing Protocol: EIGRP, EIGRP for IPv6, HSRP, IS-IS, MSDP, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, VRRP
Stackable: Stackable
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Frequency: 50 - 60 hertz
Hot-Plug: Hot-plug
Power Supplies Supported: 2
Redundant Power Supply: Optional
Required Voltage: AC 100-240 volt

Capacity: ACL scale entries: 1500, FNF entries: 16000, IPv4 routes: 11000, IPv4 routing table entries: 3000, IPv6 routing table entries: 1500, Multicast scale: 1000, Packet buffer size: 6 MB, QoS hardware queues per port: 8, Switched virtual interfaces (SVIs): 512, Virtual networks: 1, VLANs supported: 1024
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 214.28 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity with stacking: 352 Gbps, Switching capacity: 272 Gbps
Ports (2nd) Quantity: 16

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Encryption: 128-bit AES
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 379,410 Hours
Operating Humidity: 5 - 90% (non-condensing)
