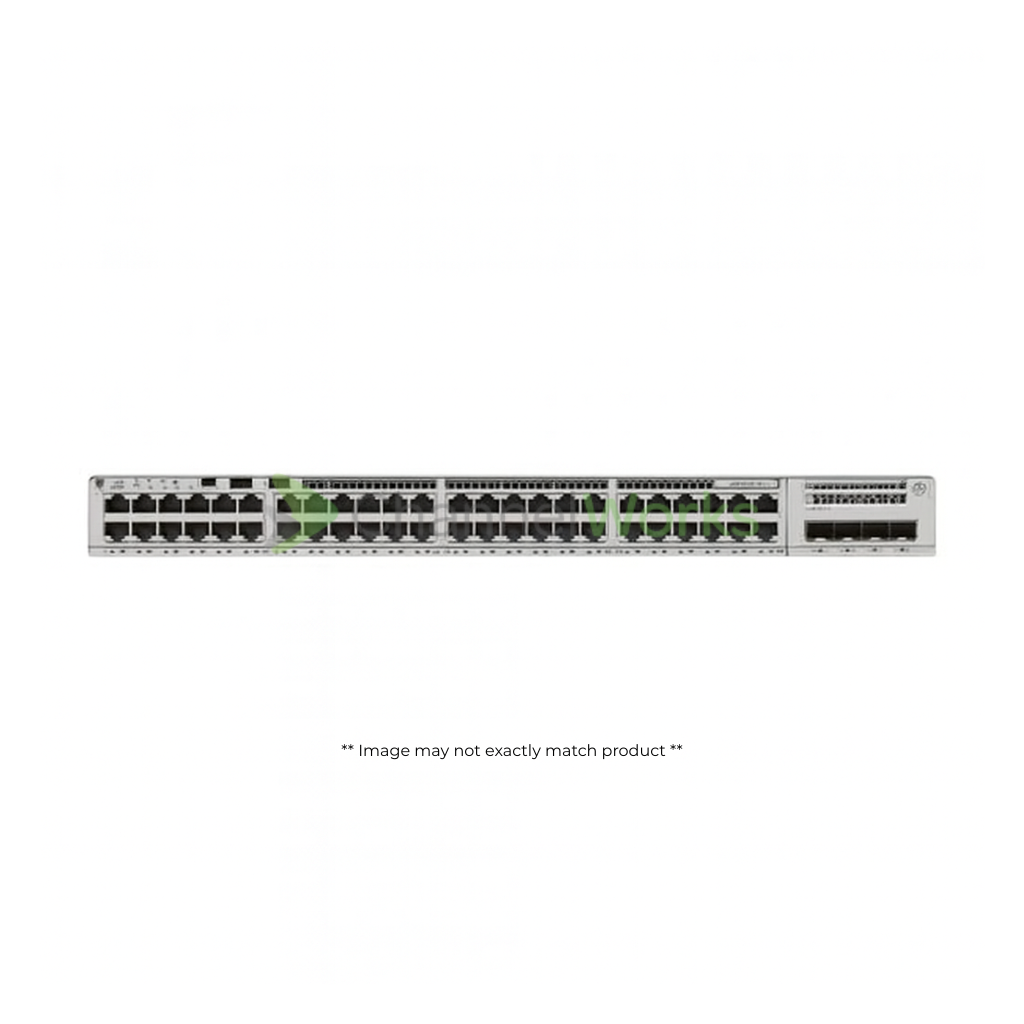

Cisco Catalyst #C9200-48P-E - Essential Edition - Switch - 48 Ports - Smart - Rack-Mountable

Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 48 x 1000Base-T RJ-45 PoE+ - 30 W
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)

Height: 13.8 inch
Weight: 12.13 lbs
Width: 17.5 inch
Depth: 1.7 inch

Flash Memory Installed: 4 GB
RAM Installed: 4 GB

Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: Control plane protection (CoPP), DNA support, Embedded Event Manager (EEM), First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Sampled NetFlow, Switched Port Analyzer (SPAN)
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9198 bytes
Manageable: Yes
PoE Budget: 740 watt
Ports: 48
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: NETCONF, RESTCONF
Routing Protocol: EIGRP, EIGRP for IPv6, IS-IS, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, VRRP
Smart: Yes
Stackable: Stackable
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet

Color Category: Gray

Hot-Plug: Hot-plug
Power Provided: 1000 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Required Voltage: AC 100-240 volt

Capacity: ACL scale entries: 16000, Direct IPv4 routes: 10000, Flexible NetFlow entries: 16000, Indirect IPv4 routes: 4000, IPv4 routes: 14000, IPv4 routing table entries: 4000, IPv6 routing table entries: 2000, MAC addresses: 32000, Multicast scale: 1000, Packet buffer size: 6 MB, Virtual networks: 4, VLAN IDs: 1000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Forwarding rate: 261.9 Mpps, Switching capacity: 176 Gbps, Wireless bandwidth: up to 48 Gbps

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 375,570 Hours
Operating System Required: Cisco IOS XE 16.9.2 or later
