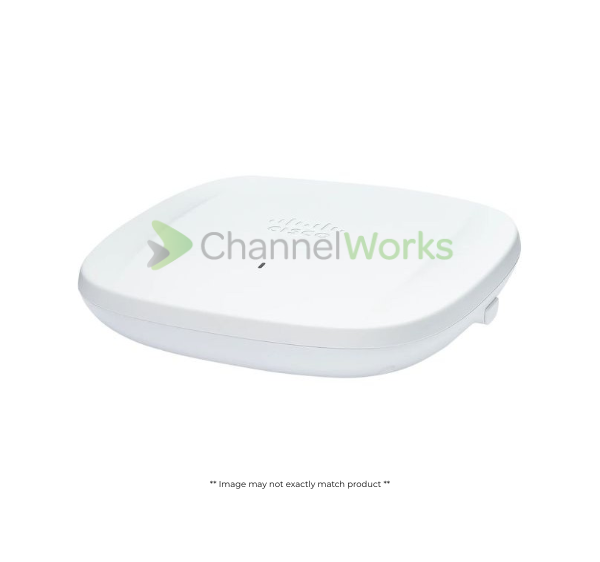

Cisco Catalyst #CW9166I-B - Wireless Access Point - Bluetooth, Wi-Fi 6E

Compliant Standards: 47 CFR Part 2.1091, AS/NZS 2772.2, AS/NZS 4268:2017, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, AS/NZS CISPR32:2015+AMD1:2020, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, CNS13438:2006, Draft EN 303 687 V0.0.14, EN 300 328 V2.2.2, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), EN 301 893 V2.1.1, EN 50385:2017, EN 55032:2015/A11:2020, EN 55035:2017+A11:2020, EN 60950-1, EN 61000-3-3:2013+A1:2019, EN 61000-6-1:2019, EN 62311:2020, EN 62368-1 Third Edition, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC Part 15.247, FCC Part 15.407, ICES-003 issue 7 Class B, IEC 60950-1, IEC 61000-3-2:2019, IEC 62368-1 Third Edition, Japan Std. 66, Japan Std. 71, KS C 9832, KS C 9835:2019, KS X 3124:2020, KS X 3126:2020, LP002, QCVN 112:2017, RSP-100, RSS-102, RSS-247, RSS-GEN, UL 2043, UL 60950-1, UL 62368-1 Third Edition, UL Class III, VCCI-CISPR 32:2016
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 1 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0

Height: 2.2 inch
Weight: 3.53 lbs
Width: 9.5 inch
Depth: 9.5 inch

Flash Memory Installed: 1 GB
RAM Installed: 2 GB

Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 6E
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.1 LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate: 7.78 GBps
Features: 4x4:4 MU-MIMO technology, Band steering, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), DFS support, Dynamic Frequency Selection (DFS), Image signing, LLDP support, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wake Time (TWT), Tri-Band, Universal power over Ethernet (UPOE), WLAN controller mode
Form Factor: External
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Power Over Ethernet (PoE): UPOE
Product Type: Wireless access point
Spread Spectrum Method: OFDMA
Status Indicators: Status
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.1 LE

Color Category: White

Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP, MS-CHAP v.2
Country: Puerto Rico, United States
IoT Communications Technology: Bluetooth Low Energy (LE)
Packaged Quantity: 1
Ruggedized Design: Indoor
Service Activation: No

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Antenna Form Factor: Internal
Directivity: Omni-directional
Encryption: AES, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, PEAPv1, WPA2-Enterprise, WPA2-Personal, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Internet of Things (IoT) Compatible: Yes
Line Coding Format: OFDMA
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Operating System Required: Cisco IOS XE 17.9.1 or later
