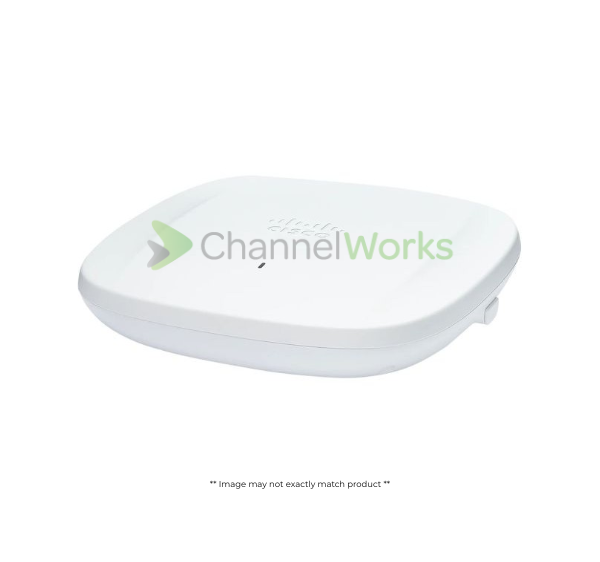

Cisco Catalyst #C9136I-B - Wireless Access Point - Bluetooth, Wi-Fi 6E
Cisco Catalyst #C9136I-B - Wireless Access Point - Bluetooth, Wi-Fi 6E
SKU:#C9136I-B
The Cisco Catalyst 9136I is a high-performance access point built for dense, modern networks. It supports Bluetooth 5.0 LE, multiple Ethernet and IEEE protocols, and advanced security with WPA3, WPA2, and AES encryption. Features like BSS Coloring, beamforming, and OFDMA improve efficiency and signal quality. With 2 GB RAM and 1 GB flash, it ensures responsive performance and reliable network management.
Certifications & Listings
Certifications & Listings
Compliant Standards: 47 CFR Part 2.1091, AN/NZS 60950.1, AS/NZS 2772, AS/NZS 4268:2017, AS/NZS 62368.1, AS/NZS CISPR32:2015 Class A, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32, CNS13438:2006 Class A, Draft EN 303 687 V0.0.14, EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 (2020-09), EN 301 893 V2.1.1, EN 50385:2017, EN 55032:2015+A11:2020, EN 55035:2017/A11:2020, EN 60950-1, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 61000-6-1:2019, EN 62368-1 Third Edition, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, ICES-003 issue 7, IEC 60950-1, IEC 61000-3-2:2019, IEC 62368-1 Third Edition, Japan Std. 66, Japan Std. 71, KS C 9832, KS C 9835, KS X 3124:2020, KS X 3126:2020, LP0002, QCVN 112:2017, QCVN 118:2018, QCVN 18:2014, RSP-100, RSS-102, RSS-247, RSS-GEN, UL 2043, UL 60950-1, UL 62368-1, UL 62368-1 Third Edition, VCCI-CISPR 32:2016
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x management - RJ-45, 1 x USB 2.0, 2 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45
Dimensions
Dimensions
Height: 2.2 inch
Weight: 3.64 lbs
Width: 9.9 inch
Depth: 9.9 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 1 GB
RAM Installed: 2 GB
Network & Communication
Network & Communication
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6E
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.0 LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features: 4x4:4 MU-MIMO technology, 8x8 MU-MIMO technology, Band steering, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), DFS support, Dynamic Frequency Selection (DFS), Image signing, LLDP support, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wait Time (TWT), Target Wake Time (TWT)
Form Factor: External
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Power Over Ethernet (PoE): UPOE
Product Type: Wireless access point
Spread Spectrum Method: OFDMA
Status Indicators: Status
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0 LE
Physical Characteristics
Physical Characteristics
Color Category: White
Product Information
Product Information
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP, MS-CHAP v.2
Country: Puerto Rico, United States
IoT Communications Technology: Bluetooth Low Energy (LE)
Packaged Quantity: 1
Ruggedized Design: Indoor
Service Activation: No
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Antenna Form Factor: Internal
Directivity: Omni-directional
Encryption: AES, EAP-FAST, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAPv1, WPA2, WPA3
Internet of Things (IoT) Compatible: Yes
Line Coding Format: OFDMA
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
