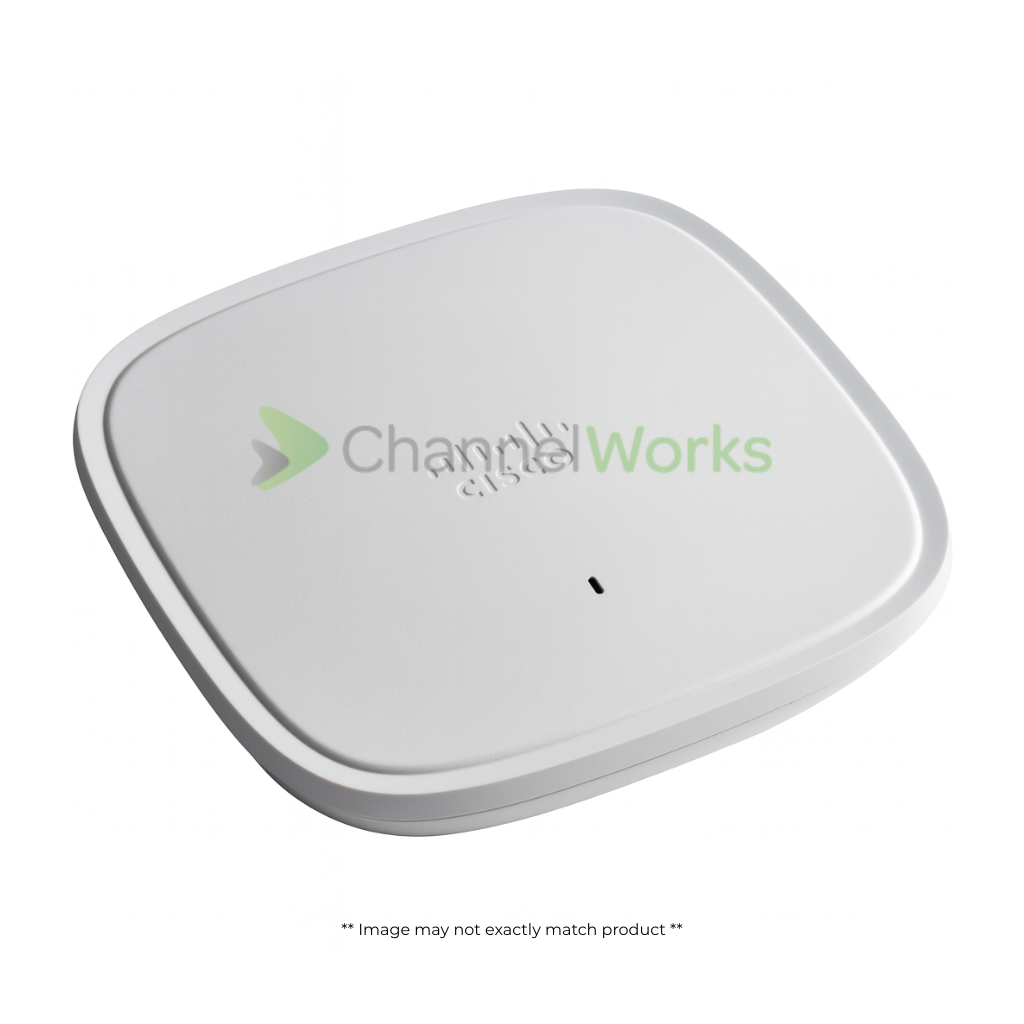

Cisco Catalyst #C9130AXI-B - Wireless Access Point - Bluetooth, Wi-Fi 6
Cisco Catalyst #C9130AXI-B - Wireless Access Point - Bluetooth, Wi-Fi 6
SKU:#C9130AXI-B
The Cisco Catalyst 9130AXI Wireless Access Point supports Wi-Fi 6 and IoT, delivering high efficiency and performance for networks of all sizes. With MU-MIMO, eight spatial streams, and built-in wireless controller, it offers advanced throughput, low latency, and smart radio management—plus BLE 5 for fast wireless updates.
Certifications & Listings
Certifications & Listings
Compliant Standards: ARPANSA, AS/NZS 2772, AS/NZS 4268, AS/NZS 60950-1, AS/NZS CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-1, CISPR 24, CISPR 32, CNS, EN 300 328 V2.1.1, EN 301 489-1, EN 301 489-17, EN 301 893 V2.1.1, EN 50385, EN 55032, EN 55035, EN 60601-1-2:2015, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1:2007, EN 62209-1, EN 62209-2, EN55024, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-1, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, KN35, LP0002, QCVN, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, UL 2043, UL 60950-1, VCCI-CISPR 32:2016
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x 1/2.5/5GBase-T (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0
Dimensions
Dimensions
Height: 1.9 inch
Weight: 3.2 lbs
Width: 8.9 inch
Depth: 8.9 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 1 GB
RAM Installed: 2 GB
Network & Communication
Network & Communication
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.15.4, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features: 4x4 MIMO technology, 802.1x authentication, 8x8 MU-MIMO technology, Cisco Trust Anchor module, Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), LLDP support, Maximum Ratio Combining (MRC), MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wait Time (TWT), Wireless Intrusion Prevention System (WIPS)
Form Factor: External
Network Band: 2.4 GHz, 5 GHz
Power Over Ethernet (PoE): UPOE
Product Type: Wireless access point
Spread Spectrum Method: OFDMA
Status Indicators: Status
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Physical Characteristics
Physical Characteristics
Color Category: White
Product Information
Product Information
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Country: United States
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Packaged Quantity: 1
Ruggedized Design: Indoor
Service Activation: No
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Software
Software
Software Type: CAPWAP Software Image
Technical Information
Technical Information
Antenna Form Factor: Internal
Encryption: AES, EAP-FAST, EAP-SIM, PEAP, TLS, TTLS, WPA2, WPA3
Internet of Things (IoT) Compatible: Yes
Line Coding Format: OFDMA
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
