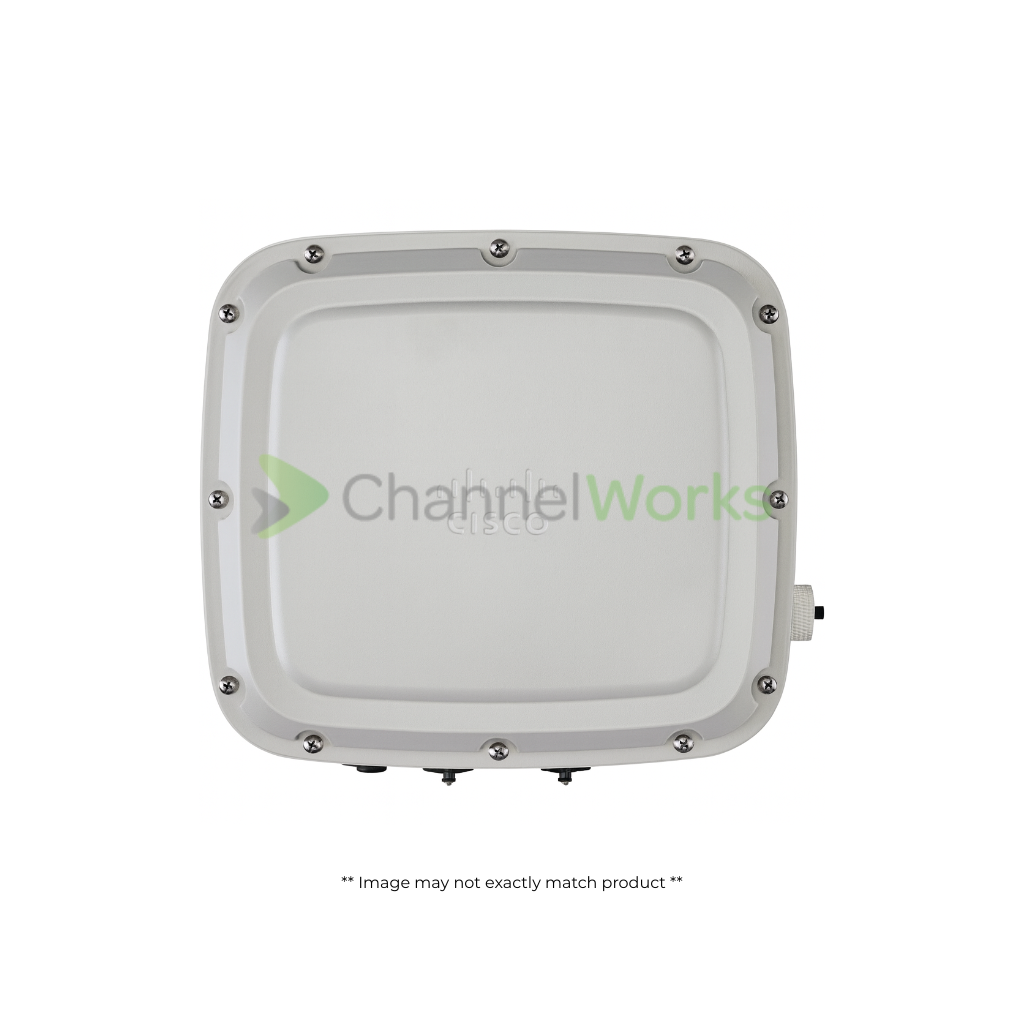

Cisco Catalyst #C9124AXE-B - Wireless Access Point - Bluetooth, Wi-Fi 6

Compliant Standards: 47 CFR Part 1.1310, 47 CFR Part 2.1091, ARPANSA, AS/NZS 2772, AS/NZS 4268:2017, AS/NZS 60950-1, AS/NZS 62368.1, AS/NZS CISPR 32 Class B, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 24:2010, CISPR 32:2015, CNS 13438, EN 300 328 V2.1.1, EN 301 893 V2.1.1, EN 50385:2017, EN 55032:2015/A11:2020, EN 55035:2017, EN 60068-2-5, EN 60950-1, EN 60950-22, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 62368-1, EN55024, ETSI EN 301 489-1 V2.2.3 (2019-11), ETSI EN 301 489-17 V3.1.1 (2017-02), FCC CFR47 Part 15 B, FCC Subpart C 15.247, FCC Subpart C 15.407, ICES-003:2016 issue 6 Class B, IEC 60529, IEC 60950-1, IEC 60950-22, IEC 62368-1, IP66, IP67, Japan Std. 33a, Japan Std. 66, Japan Std. 71, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, KN35:2015, LP0002, MIL-STD-810G 514.4, NEMA 250-2008, QCVN 112:2017, QCVN 118:2018, QCVN 18:2014, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, TCVN 7317, UL 60950-1, UL 60950-22, UL 62368-1, VCCI-CISPR 32:2016
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No

Interface Provided: 1 x 1/2.5GBase-T - RJ-45, 1 x 1000Base-T - RJ-45, 1 x 1000Base-X (uplink) - SFP, 1 x management (RS-232) - RJ-45, 6 x antenna

Height: 3.2 inch
Weight: 6.39 lbs
Width: 10.2 inch
Depth: 9.2 inch

Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n (draft 2.0), IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.15.1, IEEE 802.15.4, IEEE 802.1x, IEEE 802.3, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Features: 4K/8K UHD video streaming, 4x4 MU-MIMO technology, 802.1x authentication, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), DFS support, Image signing, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wait Time (TWT), Wi-Fi Multimedia (WMM) support, Wireless Intrusion Prevention System (WIPS)
Form Factor: External
Network Band: 2.4 GHz, 5 GHz
Power Over Ethernet (PoE): UPOE
Product Type: Wireless access point
Spread Spectrum Method: OFDMA
Status Indicators: Status
Wireless LAN: 802.11a/b/g/n (draft 2.0)/ac/ax, Bluetooth 5.0

Color Category: White

Authentication Method: EAP-FAST, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2
IoT Communications Technology: Bluetooth Low Energy (LE)
Packaged Quantity: 1
Ruggedized Design: Outdoor
Service Activation: No

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Software Type: CAPWAP Software Image

Antenna Form Factor: External detachable
Encryption: AES, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, TKIP, TLS, TTLS, WPA, WPA2, WPA3, WPA3-Enterprise
Internet of Things (IoT) Compatible: Yes
Line Coding Format: OFDMA
Max Operating Temperature: 149 degree Fahrenheit
Min Operating Temperature: -40 degree Fahrenheit
Operating Humidity: 0 - 100%
