Cisco Catalyst #C9120AXI-B - Wireless Access Point - 802.15.4, Bluetooth, Wi-Fi 6
Cisco Catalyst #C9120AXI-B - Wireless Access Point - 802.15.4, Bluetooth, Wi-Fi 6
SKU:#C9120AXI-B

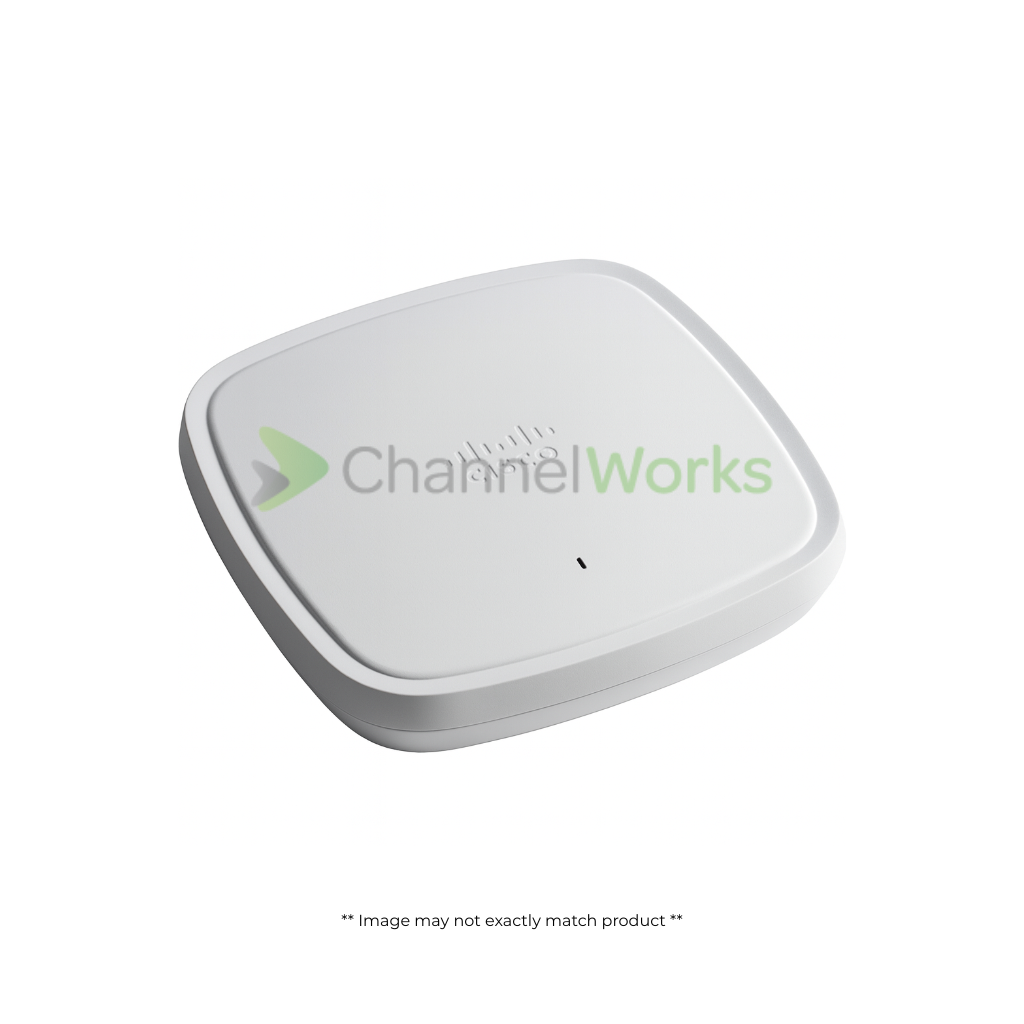

The Catalyst 9120 Access Points are ideal for mission-critical deployments with dual 5-GHz and IoT radios. Cisco CleanAir technology enhances performance beyond Wi-Fi 6, ensuring reliability in high-density environments. With Cisco DNA, they offer real-time analytics, threat detection, and network consistency through automation.
Certifications & Listings
Certifications & Listings
Compliant Standards: ARPANSA, AS/NZS 2772, AS/NZS 4268, AS/NZS 60950-1, AS/NZS CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-1, CISPR 24, CISPR 32, CNS 13438, EMI Class B, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 50385, EN 55032, EN 55035, EN 60601-1-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62209-1, EN 62209-2, EN55024, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, ICES-003, IEC 60950-1, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, LP0002, QCVN, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, TCVN 7189, UL 2043, UL 60950-1, USGv6, VCCI V-3
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Connectivity
Connectivity
Interface Provided: 1 x 1/2.5GBase-T - RJ-45, 1 x management - RJ-45, 1 x USB 2.0
Dimensions
Dimensions
Height: 1.7 inch
Weight: 2.87 lbs
Width: 8.5 inch
Depth: 8.5 inch
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 1 GB
RAM Installed: 2 GB
Network & Communication
Network & Communication
Compliant Standards: IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features: 4x4:4 MU-MIMO technology, Access Control List (ACL) support, Beamforming technology, Cisco Trust Anchor module, Cisco VideoStream technology, Cyclic shift diversity (CSD), DFS support, Dynamic Frequency Selection (DFS), Dynamic QoS, Guest access, Image signing, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Pre-Shared Key (PSK), Quality of Service (QoS), Radio resource management (RRM), Secure Boot, Target Wait Time (TWT), Wireless Intrusion Prevention System (WIPS)
Form Factor: External
Network Band: 2.4 GHz, 5 GHz
Network Standard: IPSec, IPv6
Power Over Ethernet (PoE): UPOE
Product Type: Wireless access point
Remote Management: NETCONF, RESTCONF
Status Indicators: Status
Wireless LAN: 802.11a/b/g/n/ac/ax, 802.15.4, Bluetooth 5.0
Physical Characteristics
Physical Characteristics
Color Category: White
Product Information
Product Information
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP v.2
IoT Communications Technology: Bluetooth Low Energy (LE)
Packaged Quantity: 1
Ruggedized Design: Indoor
Service Activation: No
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Software
Software
Software Type: CAPWAP Software Image
Technical Information
Technical Information
Antenna Form Factor: Internal
Directivity: Omni-directional
Encryption: AES, EAP-FAST, EAP-SIM, FIPS, PEAP, TLS, TTLS, WPA, WPA2
Internet of Things (IoT) Compatible: Yes
Line Coding Format: OFDMA
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
