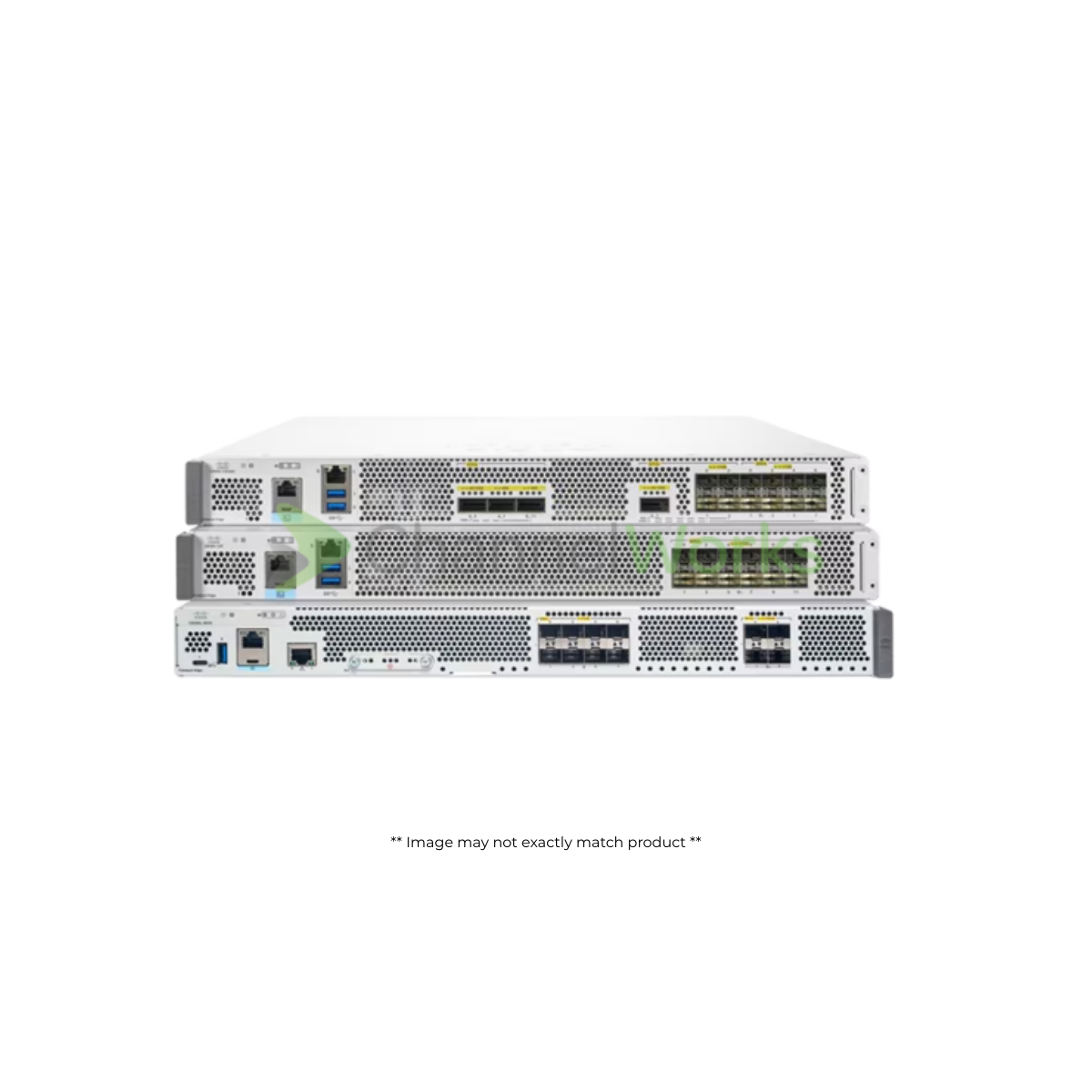

Cisco Catalyst #C8500-12X4QC Edge Platform - Router - Rack-Mountable

Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022, EN55024, FCC CFR47 Part 15 A, GB 4943, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, KN32 Class A, KN35, UL 60950-1, VCCI Class A

Interface Provided: 1 x mini-USB Type B, 12 x 1/10GBase-X SFP+, 2 x 40/100GBase-X QSFP28, 2 x 40GBase-X QSFP+, 2 x management RJ-45, 2 x USB 3.0 Type A
Port Quantity: 12
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd): 40 Gigabit QSFP+

Height: 1.7 inch
Height (Rack Units): 1
Weight: 20.75 lbs
Width: 17.5 inch
Depth: 18.5 inch

QSFP Slots: 40/100 Gigabit QSFP28

RAM Installed: 16 GB

Compliant Standards: IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Features: Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Cisco IOS IP Service-Level Agreements (IPSLA), Class-Based Weighted Fair Queuing (CBWFQ), DHCP client, DHCP relay, DHCP server, DNS client, DNS support, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Firewall protection, Flexible NetFlow (FNF), Forward Error Correction (FEC), High-Level Data Link Control (HDLC), IP Security (IPSec) support, IPFIX, L2TP support, MACsec support, Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), NTP server, Performance Routing (PfR), Point-to-Point Protocol (PPP), Quality of Service (QoS), SD-WAN support, Secure Unique Device Identification (SUDI), Syslog support, TrustSec support, Virtual Routing and Forwarding (VRF), VLAN support, VPN support, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Ports: 12
Product Type: Switch
Remote Management: CLI, DHCP, IPv4, IPv6, NETCONF, NTP, OMP, RADIUS, SCP, SNMP, SSH
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, LISP, MPLS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet

Color Category: Gray

Power Supplies Supported: 2
Redundant Power Supply: Optional

Authentication Method: RADIUS, Secure Shell (SSH)
Capacity: Access Control Entries (ACEs) per system (IPv4): 380000, ACLs per system: 4000, Firewall sessions: 6000000, IPsec SVTI tunnels: 4000, IPv4 routes: 4000000, IPv6 routes: 4000000, NAT sessions: 16000000, Queues: 256000, SD-WAN overlay tunnels scale: 8000, Virtual Routing and Forwarding (VRF) entries: 8000
Device Type: Internal power supply
Packaged Quantity: 1
Performance: IPsec throughput (1400Bytes, clear text): 135 Gbps, IPv4 forwarding throughput (1400-byte packet size): 197 Gbps, SD-WAN IPsec throughput (1400Bytes, clear text): 68 Gbps, SD-WAN IPsec throughput (IMIX, clear text): 31.9 Gbps
Ports (2nd) Quantity: 2
Ports (3rd) Quantity: 2
Service Activation: No

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Built-in Devices: 32 GB SSD
Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, DTLS, ECDSA 256-bit, ECDSA 384-bit, IKE, MD5, PKI, SHA, TLS, Triple DES
Humidity Range Storage: 5 - 95% (non-condensing)
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 146,700 Hours
Operating Humidity: 10 - 85% (non-condensing)
