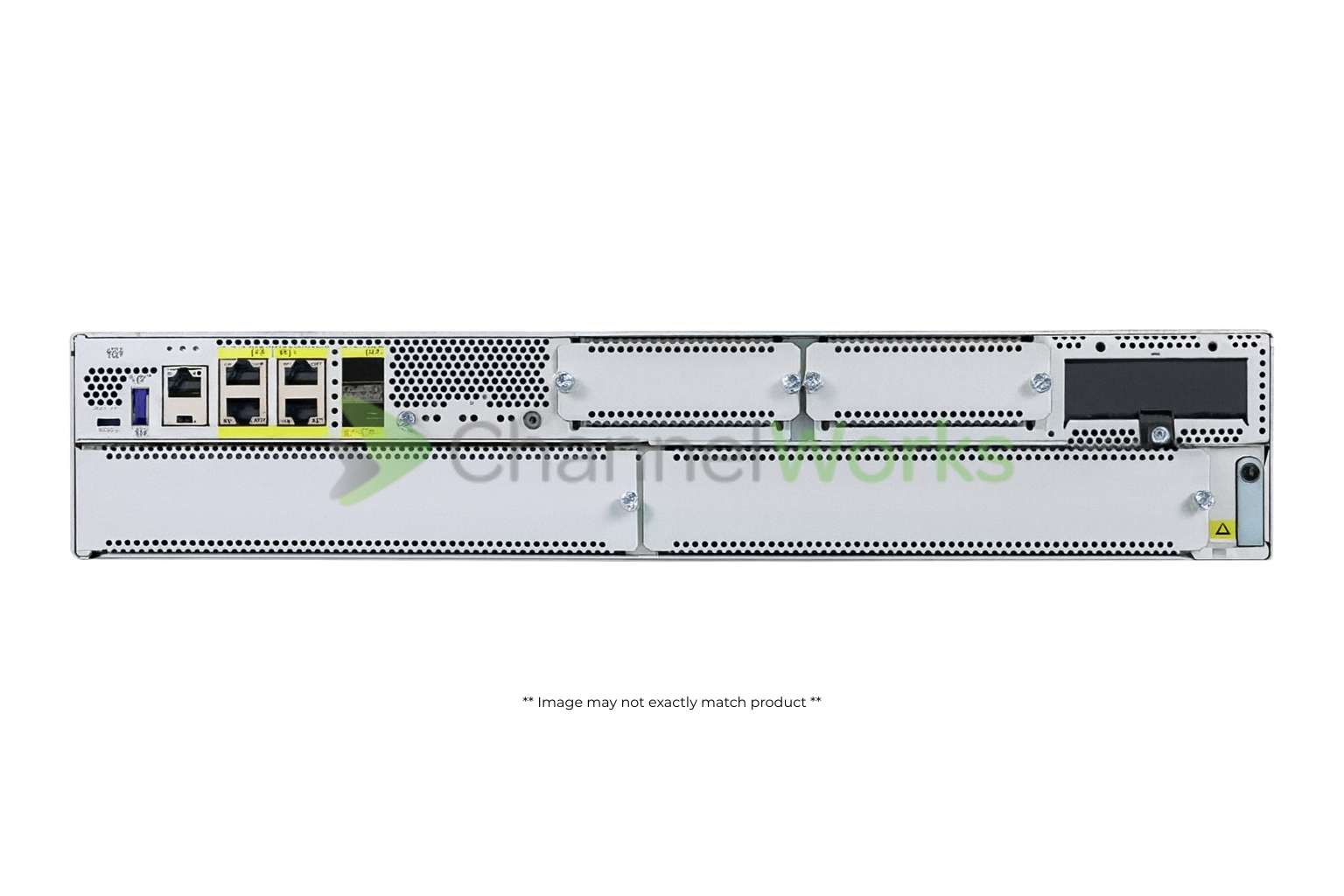

Cisco Catalyst #C8300-2N2S-6T - Router - Rack-Mountable
Cisco Catalyst #C8300-2N2S-6T - Router - Rack-Mountable
SKU:#C8300-2N2S-6T
The Cisco Catalyst 8300 Series Edge Platforms, running on Cisco IOS XE SD-WAN Software, offer a secure and scalable SD-WAN solution tailored for branch environments. Designed for high throughput, the Catalyst 8300 Series combines advanced SD-WAN capabilities with the adaptability to support both cloud-based and on-premise delivery of networking and security services. These platforms feature increased WAN interface options and support for dual power supplies for added resilience.
Equipped with Trustworthy Solutions 2.0, the Catalyst 8300 Series helps protect against security threats and system vulnerabilities through integrity verification and automated threat response. These edge platforms are an excellent fit for medium to large enterprise branch offices that require strong IPsec performance and integrated SD-WAN functionality.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, FDA, ICES-003 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 60825, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KN32 Class A, KN35, UL 60950-1
Compatibility
Compatibility
Compatibility Specs: P/N: C8300-DNA, UCS-E1100D-M6
Connectivity
Connectivity
Interface Provided: USB: 1 x, WAN / LAN: 6 x 1000Base-T
Dimensions
Dimensions
Height: 3.5 inch
Height (Rack Units): 2
Weight: 39.9 lbs
Width: 17.2 inch
Depth: 18.5 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x Pluggable Interface Module (PIM), 2 (total) / 2 (free) x NIM, 2 (total) / 2 (free) x service module (SM)
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 8 GB
Max Memory Supported: 32 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Compliant Standards: IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Features: Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Call Admission Control (CAC), Cisco IOS IP Service-Level Agreements (IPSLA), Cisco Unified Access Data Plane (UADP), Class-Based Weighted Fair Queuing (CBWFQ), DHCP client, DHCP server, DNS client, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Firewall protection, Flexible NetFlow (FNF), Forward Error Correction (FEC), High-Level Data Link Control (HDLC), Interactive Voice Response (IVR), IPFIX, Multilink Frame Relay (MLFR), Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), NTP server, PAT support, Performance Routing (PfR), Point-to-Point Protocol (PPP), Quality of Service (QoS), SD-WAN support, Secure Unique Device Identification (SUDI), Service Advertisement Framework (SAF), Syslog support, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Network Standard: DHCP, DNS, IPSec, IPv4, IPv6, L2TPv3, NTP, PPPoE, RSVP, RTCP, RTP
Product Type: Router
Remote Management: CLI, DHCP, NETCONF, NTP, OMP, RADIUS, SCP, SNMP, SSH
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, LISP, MPLS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP
Physical Characteristics
Physical Characteristics
Color Category: Gray
Processor
Processor
Product Information
Product Information
Authentication Method: RADIUS, Secure Shell (SSH)
Capacity: Access Control Entries (ACEs) per system (IPv4): 72000, ACL: 4000, Firewall sessions: 512000, IPsec SVTI tunnels: 4000, IPv4 routes: 1600000, IPv6 routes: 1500000, NAT sessions: 1200000, Queues: 16000, SD-WAN overlay tunnels scale: 6000, Virtual Routing and Forwarding (VRF) entries: 4000
Device Type: Internal power supply
Installed Devices/Modules: 0
Packaged Quantity: 1
Service Activation: No
VoIP Protocols: SIP, SRTP
Bridge & Router: IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps, IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps, SD-WAN IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps, SD-WAN IPsec throughput (IMIX, clear text): 1.75 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Storage
Storage
Hard Drive Capacity: 16 GB
Technical Information
Technical Information
Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit AES-CBC, 256-bit AES-GCM, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, DTLS, ECDSA 256-bit, ECDSA 384-bit, ESP, HMAC, IKE, MD5, PKI, SHA, SHA-1, SHA-2, SSL, TLS, Triple DES
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
MTBF: 710,300 Hours
Operating Humidity: 5 - 85% (non-condensing)
Operating System Required: Cisco IOS XE 17.3.2
Supported Devices: 5
