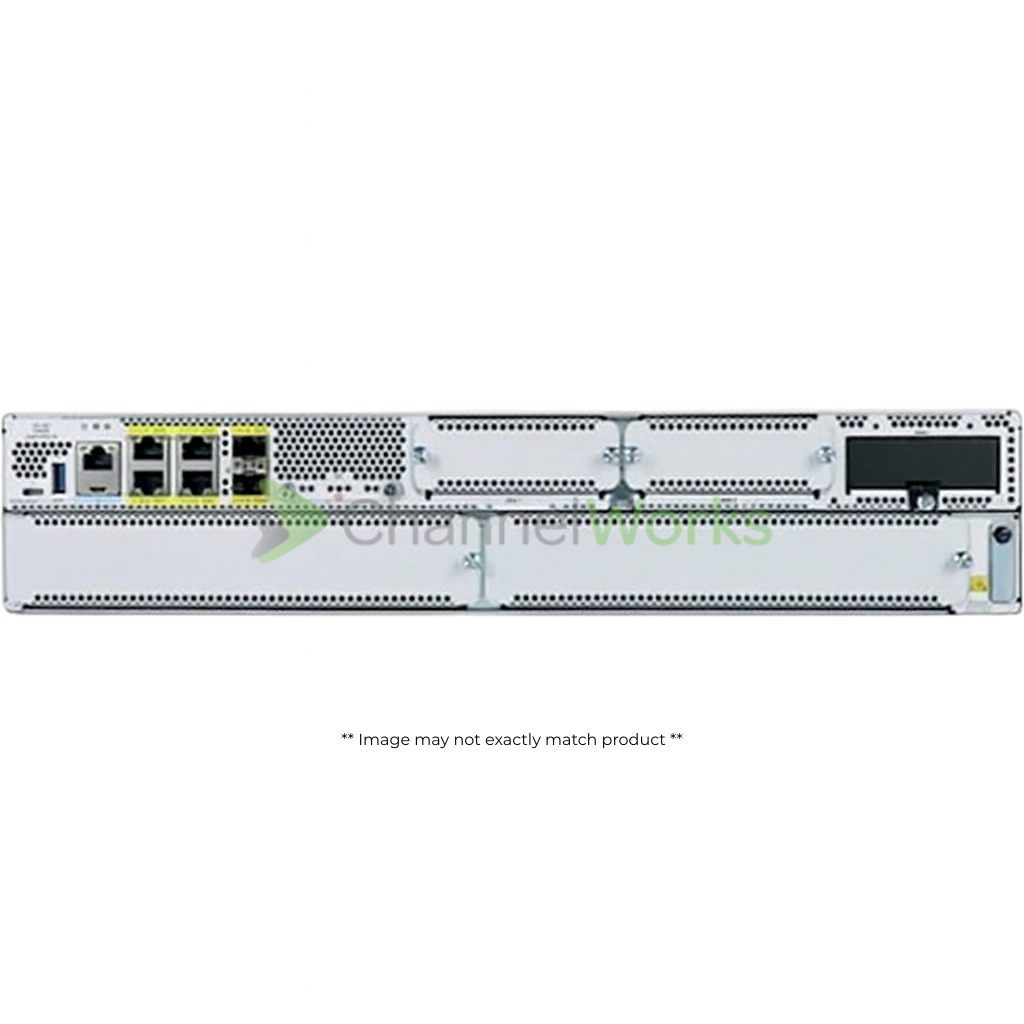

Cisco Catalyst #C8300-2N2S-4T2X - Router - Rack-Mountable

Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, FDA, ICES-003 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 60825, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KN32 Class A, KN35, UL 60950-1

Compatibility Specs: P/N: C8300-DNA, UCS-E1100D-M6

Interface Provided: USB: 1 x, WAN / LAN: 2 x 10Gb Ethernet, WAN / LAN: 4 x Ethernet 1000

Height: 3.5 inch
Height (Rack Units): 2
Weight: 39.9 lbs
Width: 18.5 inch
Depth: 17.2 inch

Expansion Slots: 2 (total) / 2 (free) x NIM, 2 (total) / 2 (free) x service module (SM)

Flash Memory Installed: 8 GB
RAM Installed: 8 GB

Compliant Standards: IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Features: Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Bidirectional Forwarding Detection (BFD), Call Admission Control (CAC), Cisco IOS IP Service-Level Agreements (IPSLA), Class of Service (CoS), Class-Based Weighted Fair Queuing (CBWFQ), Datagram Transport Layer Security (DTLS), DHCP client, DHCP server, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Flexible NetFlow (FNF), Forward Error Correction (FEC), Hierarchical Quality of Service (HQoS), High-Level Data Link Control (HDLC), Interactive Voice Response (IVR), Multilink Frame Relay (MLFR), Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), PAT support, Point-to-Point Protocol (PPP), Protocol Independent Multicast (PIM), Quality of Service (QoS), Service Advertisement Framework (SAF), Source-Specific Multicast (SSM), Syslog support, URL filtering, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Network Standard: DHCP, DNS, IPSec, L2TPv3, NTP, PPPoE, RSVP, RTCP
Product Type: Router
Remote Management: OMP, SCP, SNMP
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, OSPFv3, Policy-based routing (PBR), RIP, RIP-2, VRRP

Color Category: Gray

Authentication Method: RADIUS, Secure Shell (SSH)
Capacity: Access Control Entries (ACEs) per system (IPv4): 72000, ACL: 4000, Firewall sessions: 512000, IPv4 routes: 1600000, IPv6 routes: 1500000, Maximum overlay tunnels: 6000, NAT sessions: 1200000, Queues: 16000, Virtual Routing and Forwarding (VRF) entries: 4000
Device Type: Internal power supply
Installed Devices/Modules: 0
Packaged Quantity: 1
Service Activation: No
VoIP Protocols: SRTP
Bridge & Router: IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps, VPN throughput (1400 B IPSec): 18 Gbps, VPN throughput (IMIX IPSec): 5 Gbps

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Hard Drive Capacity: 16 GB

Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES-CBC, 256-bit AES-GCM, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA 256-bit, ECDSA 384-bit, ESP, HMAC, IKE, MD5, PKI, SHA-1, SHA-2, TLS, Triple DES
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
MTBF: 710,300 Hours
Operating Humidity: 5 - 85% (non-condensing)
Operating System Required: Cisco IOS XE 17.3.2
Supported Devices: 4
