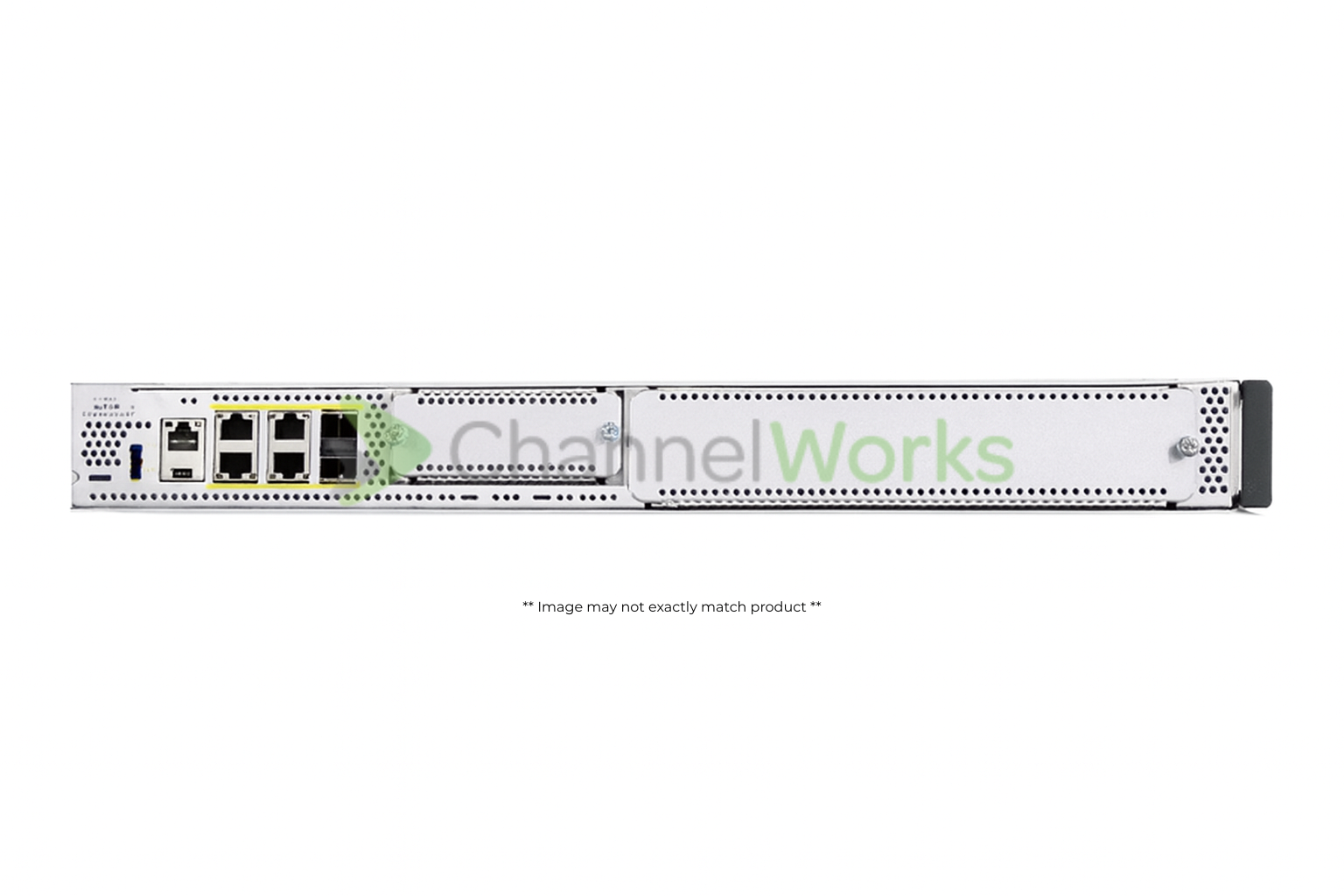

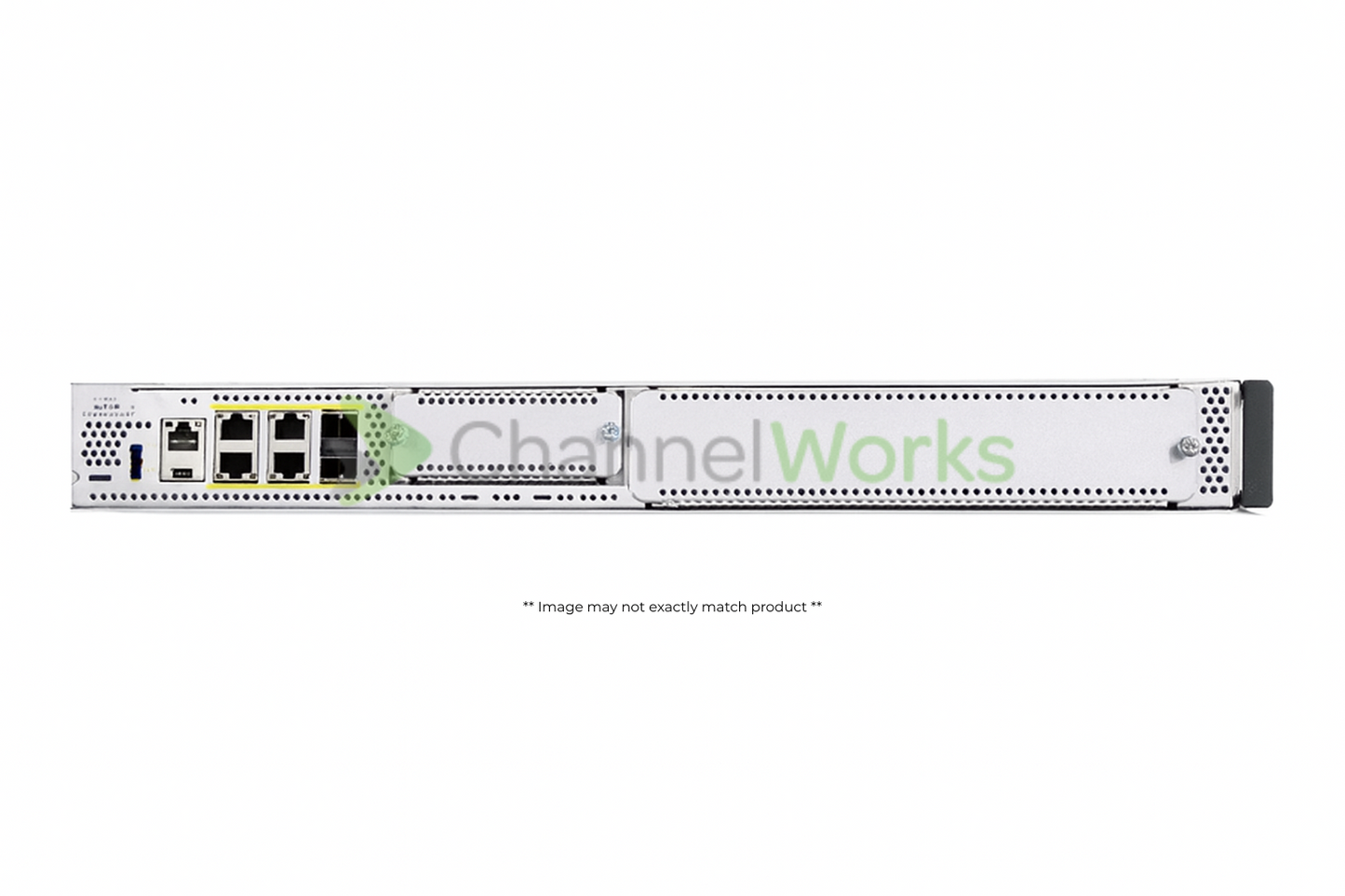

Cisco Catalyst #C8300-1N1S-6T - Router - Rack-Mountable
Cisco Catalyst #C8300-1N1S-6T - Router - Rack-Mountable
SKU:#C8300-1N1S-6T
The Cisco Catalyst 8300 Series platforms provide a secure, cloud-ready SD-WAN solution designed specifically for branch environments. Engineered for high performance, these platforms integrate advanced SD-WAN features with the versatility to support both on-premises and cloud-based delivery of networking and security services. They offer enhanced WAN port capacity and the option for redundant power supplies to ensure system reliability.
Built on a fully programmable software framework with API integration, the Catalyst 8300 Series enables scalable automation and supports zero-touch IT operations—ideal for organizations transitioning workloads to the cloud. These edge platforms also include robust security infrastructure with built-in mechanisms for verifying system integrity and addressing potential threats.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, FDA, ICES-003 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 60825, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KN32 Class A, KN35, UL 60950-1
Compatibility
Compatibility
Compatibility Specs: P/N: C8300-DNA
Connectivity
Connectivity
Interface Provided: USB: 1 x, WAN / LAN: 6 x Ethernet 1000
Dimensions
Dimensions
Height: 1.7 inch
Height (Rack Units): 1
Weight: 20 lbs
Width: 17.5 inch
Depth: 16.3 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x NIM, 1 (total) / 1 (free) x service module (SM)
Included Items
Included Items
Memory
Memory
Flash Memory Installed: 8 GB
RAM Installed: 8 GB
Network & Communication
Network & Communication
Compliant Standards: IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Features: Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Bidirectional Forwarding Detection (BFD), Call Admission Control (CAC), Cisco IOS IP Service-Level Agreements (IPSLA), Class of Service (CoS), Class-Based Weighted Fair Queuing (CBWFQ), Datagram Transport Layer Security (DTLS), DHCP client, DHCP server, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Flexible NetFlow (FNF), Forward Error Correction (FEC), Hierarchical Quality of Service (HQoS), High-Level Data Link Control (HDLC), Interactive Voice Response (IVR), Multilink Frame Relay (MLFR), Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), PAT support, Point-to-Point Protocol (PPP), Protocol Independent Multicast (PIM), Quality of Service (QoS), Service Advertisement Framework (SAF), Source-Specific Multicast (SSM), Syslog support, URL filtering, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Network Standard: DHCP, DNS, IPSec, L2TPv3, NTP, PPPoE, RSVP, RTCP
Product Type: Router
Remote Management: OMP, SCP, SNMP
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, OSPFv3, Policy-based routing (PBR), RIP, RIP-2, VRRP
Physical Characteristics
Physical Characteristics
Color Category: Gray
Power
Power
Power Supplies Supported: 1
Processor
Processor
Product Information
Product Information
Authentication Method: RADIUS, Secure Shell (SSH)
Capacity: Access Control Entries (ACEs) per system (IPv4): 72000, ACL: 4000, Firewall sessions: 512000, IPv4 routes: 1600000, IPv6 routes: 1500000, Maximum overlay tunnels: 6000, NAT sessions: 1200000, Queues: 16000, Virtual Routing and Forwarding (VRF) entries: 4000
Device Type: Internal power supply
Installed Devices/Modules: 0
Packaged Quantity: 1
Service Activation: No
VoIP Protocols: SRTP
Bridge & Router: IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps, VPN throughput (1400 B IPSec): 1.9 Gbps, VPN throughput (IMIX IPSec): 5 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Storage
Storage
Hard Drive Capacity: 16 GB
Technical Information
Technical Information
Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES-CBC, 256-bit AES-GCM, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA 256-bit, ECDSA 384-bit, ESP, HMAC, IKE, MD5, PKI, SHA-1, SHA-2, TLS, Triple DES
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
MTBF: 536,060 Hours
Operating Humidity: 5 - 85% (non-condensing)
Operating System Required: Cisco IOS XE 17.3.2
Supported Devices: 2
