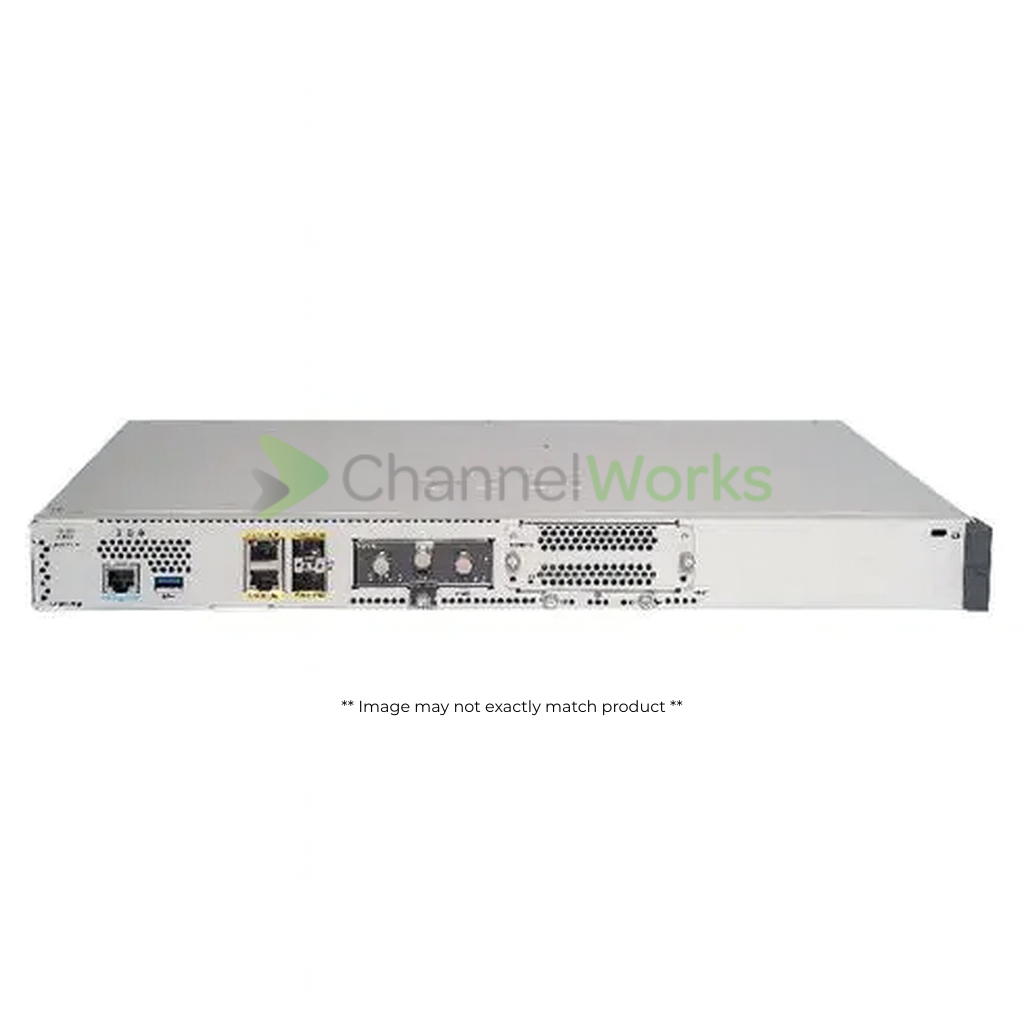

Cisco Catalyst #C8200-1N-4T - Router - Rack-Mountable

Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-6-1, EN55024, FCC CFR47 Part 15 A, FDA, ICES-003 Class A, IEC 60950-1, IEC 61000-3-2, IEC/EN 60825, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KN32 Class A, KN35, UL 60950-1, VCCI-CISPR 32:2016 Class A

Interface Provided: WAN: 4 x Ethernet 1000

Height: 1.7 inch
Height (Rack Units): 1
Weight: 10.01 lbs
Width: 17.2 inch
Depth: 11.8 inch

Expansion Slots: 1 (total) / 1 (free) x NIM, 1 (total) / 1 (free) x Pluggable Interface Module (PIM)

Flash Memory Installed: 8 GB
Max Memory Supported: 32 GB
RAM Installed: 8 GB

Compliant Standards: IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Features: Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Bidirectional Forwarding Detection (BFD), Call Admission Control (CAC), Cisco IOS IP Service-Level Agreements (IPSLA), Class of Service (CoS), Class-Based Weighted Fair Queuing (CBWFQ), Datagram Transport Layer Security (DTLS), DHCP client, DHCP server, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Flexible NetFlow (FNF), Forward Error Correction (FEC), Hierarchical Quality of Service (HQoS), High-Level Data Link Control (HDLC), Interactive Voice Response (IVR), Multilink Frame Relay (MLFR), Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), PAT support, Point-to-Point Protocol (PPP), Protocol Independent Multicast (PIM), Quality of Service (QoS), Secure Unique Device Identification (SUDI), Service Advertisement Framework (SAF), Source-Specific Multicast (SSM), Syslog support, URL filtering, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches): Rack-mountable
Network Standard: DHCP, DNS, IPSec, L2TPv3, NTP, PPPoE, RSVP, RTCP
Product Type: Router
Remote Management: OMP, SCP, SNMP
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, OSPFv3, Policy-based routing (PBR), RIP, RIP-2, VRRP

Color Category: Gray

Frequency: 50/60 hertz
Power Provided: 100 watt
Power Supplies Supported: 1

Authentication Method: RADIUS, Secure Shell (SSH)
Capacity: Access Control Entries (ACEs) per system (IPv4): 72000, Firewall sessions: 512000, IPsec SVTI tunnels: 4000, IPv4 routes: 1600000, IPv6 routes: 1500000, NAT sessions: 1200000, Queues: 16000, SD-WAN overlay tunnels scale: 4000, Virtual Routing and Forwarding (VRF) entries: 4000
Device Type: Internal power supply
Installed Devices/Modules: 0
Packaged Quantity: 1
Service Activation: No
VoIP Protocols: SRTP
Bridge & Router: IPsec throughput (1400Bytes, clear text): 1 Gbps, IPv4 forwarding throughput (1400-byte packet size): 6 Gbps, SD-WAN IPsec throughput (IMIX, clear text): 900 Mbps

Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year

Hard Drive Capacity: 16 GB

Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES-CBC, 256-bit AES-GCM, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA 256-bit, ECDSA 384-bit, ESP, HMAC, IKE, MD5, PKI, SHA-1, SHA-2, TLS, Triple DES
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
MTBF: 692,577 Hours
Operating Humidity: 5 - 85% (non-condensing)
Operating System Required: Cisco IOS XE 17.4.1
Supported Devices: 2
