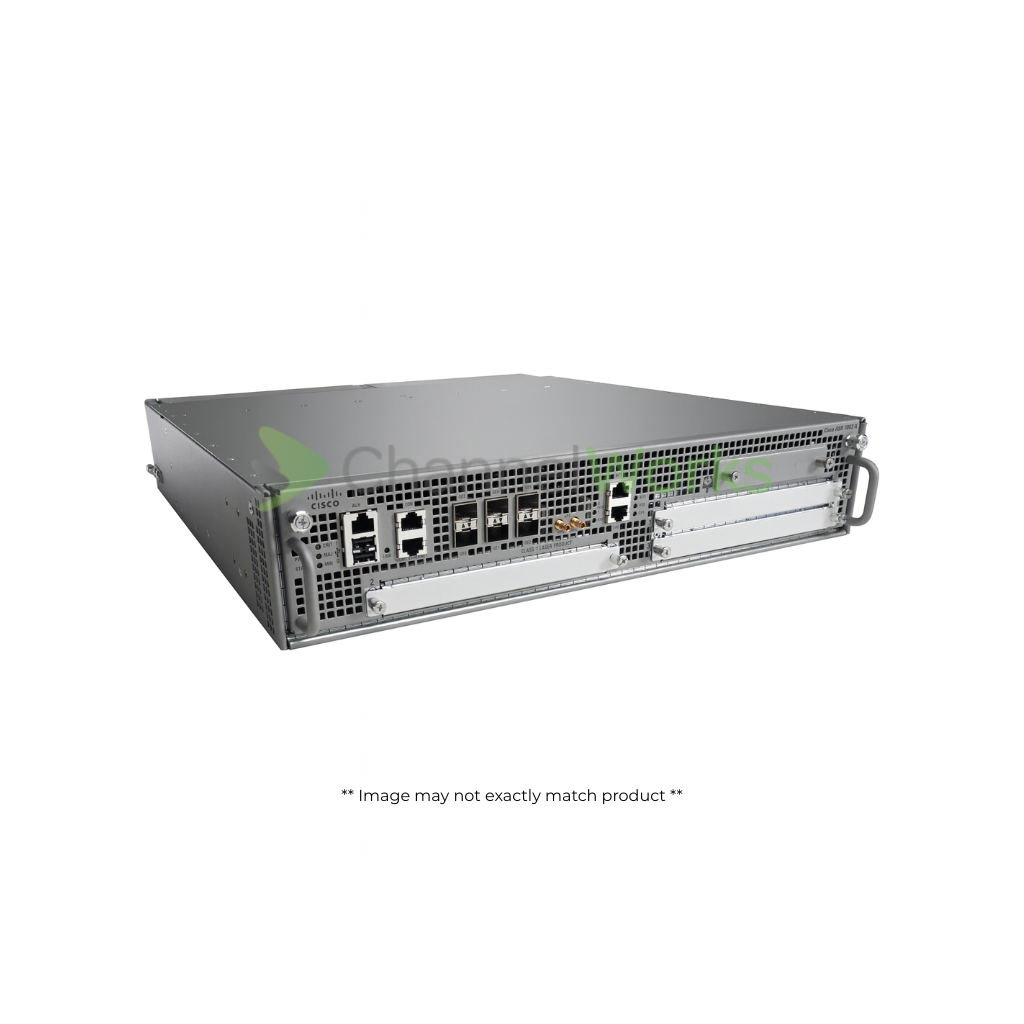

Cisco #ASR1002-HX - Router - Rack-Mountable
Cisco #ASR1002-HX - Router - Rack-Mountable
SKU:#ASR1002-HX
The ASR 1002-HX is a space-efficient router designed to provide high bandwidth performance. It supports rapid service activation and includes flexible, on-demand encryption features to meet evolving network security needs.
Certifications & Listings
Certifications & Listings
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 22, CISPR 22, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, CSA C22.2 No. 60950-1-03, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN50082-1, EN55022, EN55022 Class A, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, VCCI Class A
Connectivity
Connectivity
Interface Provided: 8 x 1000Base-X - SFP (mini-GBIC), 8 x 10GBase-X - SFP+, Management: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Management: 1 x auxiliary - RJ-45, Management: 1 x console - RJ-45, USB: 1 x console, USB: 2 x 4 pin USB Type A
Dimensions
Dimensions
Height: 3.5 inch
Height (Rack Units): 2
Weight: 34.06 lbs
Width: 17.3 inch
Depth: 19.3 inch
Expansion Slots
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Included Items
Included Items
Memory
Memory
Max Memory Supported: 16 GB
RAM Installed: 16 GB
Network & Communication
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Features: Access Control List (ACL) support, Deep Packet Inspection (DPI), DiffServ Code Point (DSCP) support, In-Service Software Upgrade (ISSU), NAT support, NetFlow, Quality of Service (QoS)
Form Factor (Hubs & Switches): Rack-mountable
Key Features: Firewall, USB port, VPN support
Modular: Modular
Network Standard: IPSec
Product Type: Router
Status Indicators: Active, Power, Standby, Status
Physical Characteristics
Physical Characteristics
Color Category: Silver
Power
Power
Hot-Plug: Hot-plug
Power Provided: 500 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Product Information
Product Information
Airflow Direction: Front to back airflow
Capacity: IPSec tunnels: 8000
Device Type: Internal power supply
Installed Devices/Modules: 0
Packaged Quantity: 1
Service Activation: No
Bridge & Router: Encryption throughput: up to 25 gbps, ESP bandwidth: 100 Gbps
Service & Support
Service & Support
Service & Support Details: Limited warranty - advance hardware replacement – 1 year
Limited Warranty: 1 Year
Technical Information
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 85%
Operating System Required: Cisco IOS XE 16.2.0S
Supported Devices: 1
